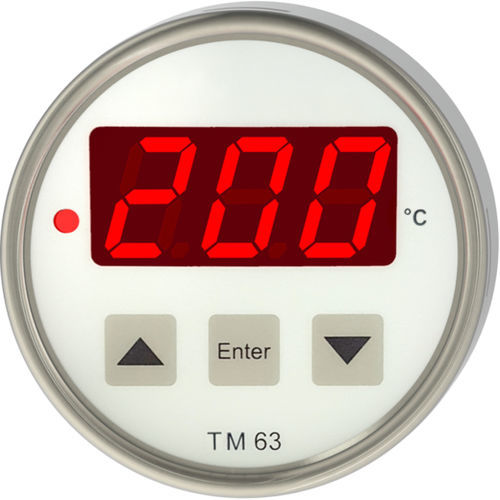

Digital thermometer TM63

°Canalog output

The  TM63 digital thermometer features a large, bright display.  The digital thermometer can still be easily read from a distance and therefore allows for a quick assessment of the process temperature. An analog output and a switch output widen the range of applications. The process connections are made of high-quality stainless steel  1.4404  and are therefore suitable for almost all media.  All wetted components are food safe,  making the unit ideal for use in beverage and process water applications. Features 3 digit LED display Recording min./max. temerature Measuring ranges from -20…200°C Contact output DC PNP, max. 200 mA Analog output: 4…20 mA, 3-wires         0…10 V, 3-wires         0...20 mA, 3-wires Applications: Beverage industry Industrial water applications Gaseous media Hygiene applications Abrasive media Aggressive media Technical data: Measuring ranges - Smallest measuring range: 0…50°C - Largest measuring range: 0…200°C - Negative measuring range: up to -20°C Analog output - 4…20 mA, 3-wires - 0…20 mA, 3-wires - 0…10 V, 3-wires Power supply - 20 mA output: 10…30 V DC - 10 V output: 16…30 V DC Accuracy - ≤ ± 0,3 % FS @ 25 °C +0,3 °C +0,005 °C x t (Pt1000 Kl. B) Long term stability - ≤ ± 0,2 % FS / Year Switch-on time - < 1 s Temperature coefficient - ≤ ± 0,02 % FS / Kelvin Medium temperature - -50…200 °C Surrounding temperature - -25…80 °C Storage temperature - -40…85 °C Short-circuit resistance - Permanent Reverse polarity protection - Protection against reverse polarity, but no function
