Class I surge protector NSPD7-2754S
class IItype 1 + 2high-energy

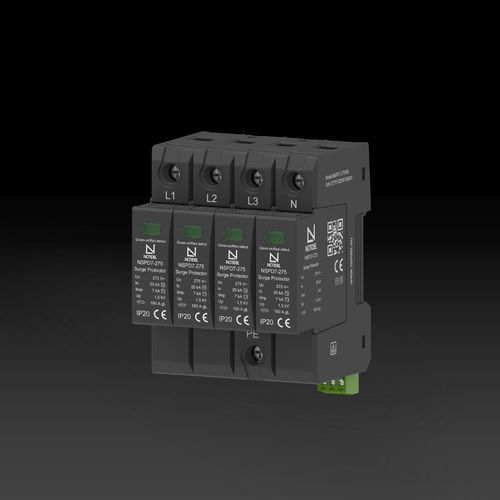

Class I surge protector - NSPD7-2754S - NORDEL - class II / type 1 + 2 / high-energy
Class I surge protector - NSPD7-2754S - NORDEL - class II / type 1 + 2 / high-energy
Class I surge protector - NSPD7-2754S - NORDEL - class II / type 1 + 2 / high-energy - image - 2
Class I surge protector - NSPD7-2754S - NORDEL - class II / type 1 + 2 / high-energy - image - 3
Class I surge protector - NSPD7-2754S - NORDEL - class II / type 1 + 2 / high-energy - image - 4
Add to favorites
Compare this product
Go to the NORDEL website for more information

Characteristics

Type
class II, class I, type 1 + 2
Applications
for electrical networks, high-energy
Other characteristics
MOV, N-PE, plug-in, board-mount
Voltage

Max.: 275 V

Min.: 0 V

Primary current

7,000 A, 20,000 A

Description

Surge Ratings: lm 7 KA(10/350 us) | 1,5 20 kA (8/20 Hs) Compliance: IEC 61643-11:2011 | EN61643-11:2012 Network Systems: TN-S, TN-C, TT (only L-N) Mode of Protection: L-PE, N-PE (only TN-S), L-PEN, L-N Location of Use: Main Distribution Boards Housing: Pluggable Design Protective Elements: High Energy MOV IEC/EN Category: Class I+ll / Type 1+2
