Class I surge protector NSPD12.5-2753S+1
class IItype 1 + 2for electrical installations

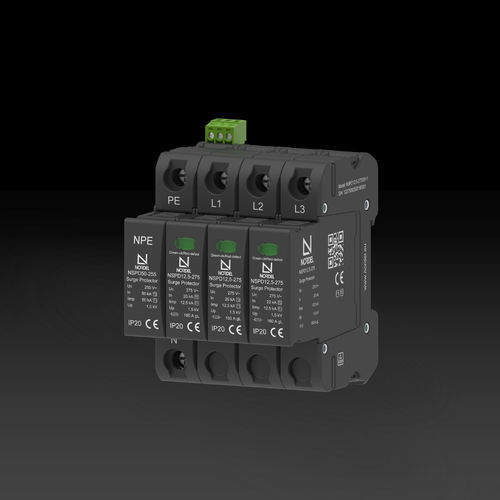

Class I surge protector - NSPD12.5-2753S+1 - NORDEL - class II / type 1 + 2 / for electrical installations
Class I surge protector - NSPD12.5-2753S+1 - NORDEL - class II / type 1 + 2 / for electrical installations
Class I surge protector - NSPD12.5-2753S+1 - NORDEL - class II / type 1 + 2 / for electrical installations - image - 2
Class I surge protector - NSPD12.5-2753S+1 - NORDEL - class II / type 1 + 2 / for electrical installations - image - 3
Class I surge protector - NSPD12.5-2753S+1 - NORDEL - class II / type 1 + 2 / for electrical installations - image - 4
Add to favorites
Compare this product
Go to the NORDEL website for more information

Characteristics

Type
class II, class I, type 1 + 2
Applications
for electrical installations, for electrical networks, high-energy
Other characteristics
MOV, N-PE, plug-in
Voltage

Max.: 275 V

Min.: 0 V

Primary current

Max.: 20,000 A

Min.: 0 A

Description

Surge Ratings: |, = up to 20 kA (8/20us) lim 7 UP to 12.5 kA (10/350 s) Compliance: IEC 61643-11:2011 | EN61643-11:2012 Network Systems: TN-S, TN-C, TT (only L-N) Mode of Protection: L-PE, N-PE (only TN-S), L-PEN, L-N Location of Use: Main Distribution Boards Housing: Pluggable Design Protective Elements: High Energy MOV IEC/EN Category: Class I+ll / Type 1+2
