Underground vehicle CHARMEC MF 605 V LE SD

explosives transport and loading (emulsions)electric

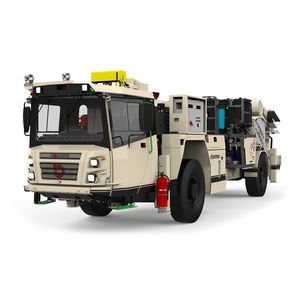

Charmec MF 605 V Long End SD is a battery-electric carrier for an external emulsion unit, designed for superiorly safe and efficient face and production charging in underground mines and tunnels with up to 65 m2 cross sections and a maximum face height of 8.8 meters. Built on the Normet SmartDrive® architecture with zero local emissions, the machine is equipped with a FOPS/ROPS cabin, a front axle suspension system and several safety features as standard. It also features dedicated storage solutions for stick powder boxes, primers and detonators, removing the need for an additional explosive service vehicle. Since the introduction of the first Nomad Charger in the 1970s, we have developed extensive expertise in underground charging. Since then, we have continued to develop charging equipment, cementing our position as the world's leading manufacturer of underground explosives chargers. Key specification Battery-electric emulsion charger Carrying capacity: For up to a 4 ANE-tonne external emulsion kit (max weight 6 t) Lifting capacity: Up to 500 kg Max. vertical reach: 8.3 m Tramming height: 2.8 m Features Safety FOPS/ROPS approved cabin Cabin door interlock switches with safety brake application as standard Reversing camera system for superior reversing visibility No diesel fumes or hot exhaust gases Almost no surface heat SAHR, fail-safe safety brakes Brake testing possible from the cabin Dangerous boom movement prevention/warning system Optional basket safety roof (with hydraulic lift / lift & slide) Sustainability Zero local emissions Decreased ventilation need
