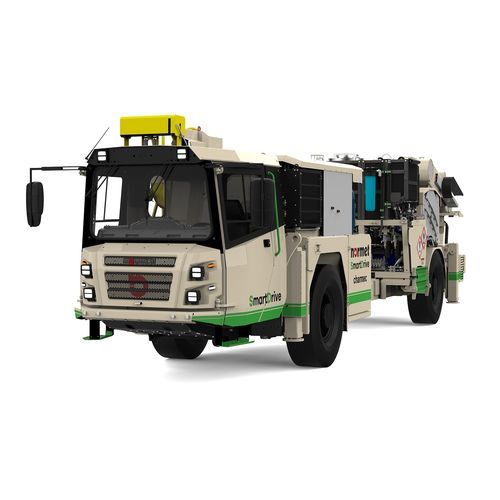

Underground mining vehicle CHARMEC REVO MF 600 V(E) SD

electric

Overview
Charmec Revo MF 600 V(E) SD is a battery-electric remote emulsion charger for underground hard rock mining. Its purpose-built design covers the special needs of underground development charging, eliminating the need for the operator to be in the vicinity of the development face wall where incident risk is high. The machine is optimized for safe and efficient charging in tunnels from 4 x 4 m up to 6 x 6 m and is built on the Normet SmartDrive® architecture with zero local emissions. It includes an enclosed FOPS/ROPS cabin, front axle suspension and multiple standard safety features.

Key specification

• Battery-electric remote development emulsion charger
• Carrying capacity: supports up to a 4 ANE-tonne external emulsion kit (max weight 6 t)
• Maximum vertical reach: 6 m
• Tramming height: 2.8 m

Features
Safety

• Removes operator from unsupported area
• FOPS/ROPS certified cabin
• Cabin door interlock switches with safety brake application as standard
• Reversing camera for improved rear visibility
• No diesel fumes or hot exhaust gases
• Minimal surface heat
• SAHR fail-safe safety brakes
• Brake testing possible from the cabin
• Reduced fire risk due to emulsion load positioned away from the battery end

Sustainability

• Zero local emissions
• Reduced ventilation requirements

Ergonomics and operator environment

• Eliminates manual explosives charging work
• Cabin designed for ergonomics and safety
• Low noise levels
• No harmful underground diesel particles
• Air conditioning and cabin heating
• Advanced front axle suspension for operator comfort
• Optional heated mirrors
• Multifunction display with key driving information
• Suspended T-back seats with 3-point seat belts for driver and passenger
• Optional cabin door safety brake interlock switches

Productivity and efficiency

• Ultra-fast, precise servo-robotic arm integrated with robust mining carrier
• Compact size enables fast, agile transit
• High load capacity reduces trips to explosives warehouse
• Fast charging capable
• Up to 50% energy recuperation during downhill driving and deceleration
• Long-life industrial-grade Li-ion batteries
• Powerful direct-drive architecture for higher uphill tramming speeds
• Longer service intervals than diesel equivalents
• Dry chemical fire extinguisher system
• Hydraulic rear support legs and optional hydraulic front support legs

Technical specifications

• Architecture: Normet SmartDrive® (battery-electric, zero local emissions)
• Intended use: Remote emulsion charging in underground hard rock mining and tunnelling (suitable for tunnels from 4 x 4 m up to 6 x 6 m)
• Carrying capacity: Supports up to a 4 ANE-tonne external emulsion kit (max weight 6 t)
• Maximum vertical reach: 6 m
• Tramming height: 2.8 m
• Operator protection: Enclosed FOPS/ROPS cabin, cabin door interlock switches, brake testing from cabin, reversing camera
• Drive and energy: Battery-electric drive with long-life industrial-grade Li-ion batteries, fast charging capable, up to 50% energy recuperation, direct-drive architecture
• Comfort and ergonomics: Air conditioning and heating, advanced front axle suspension, suspended T-back seats with 3-point seat belts, multifunction display
• Safety systems: SAHR fail-safe brakes, dry chemical fire extinguisher system, reduced fire risk due to emulsion placement away from battery end
• Support equipment: Hydraulic rear support legs and optional hydraulic front support legs
