Diaphragm turning chuck DPH1000W

automatic6-jawclamp

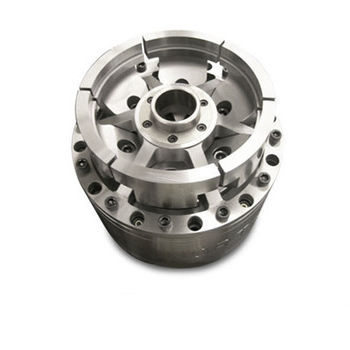

Picture illustrates one Northfield DPH1000W, 10-inch diaphragm chuck capable of locating and clamping two work pieces with different location data. Due to production requirements, end-user requested quick and accurate changeover between the work piece numbers. The chuck was manufactured with special stepped top-jaws that could locate and clamp both work pieces without changeover. For end-to-end location difference between the work pieces, the chuck was manufactured with a master axial locator, incorporating a “button” style stop used for changeover. With replacement of only the button stop, the changeover was quick, accurate and repeatable.
