Hose flange HDC-ADFstainless steelthrough-holeANSI
Add to favorites
Compare this product
Characteristics
- Applications
- for hoses
- Material
- stainless steel
- Other characteristics
- through-hole, ANSI
- Nominal diameter
2 in
Description

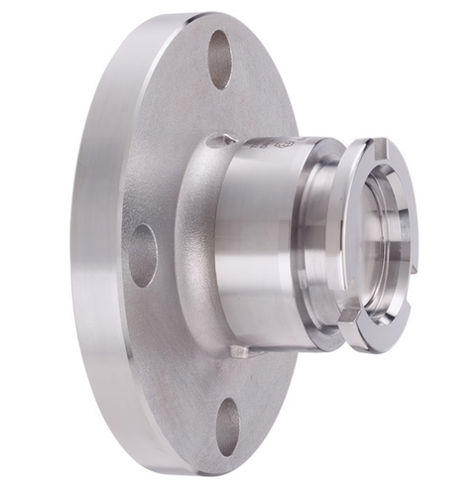

HDC-ADF 2" Stainless Steel Dry Release Flanged Adapter
Size/Type: 2"
Socket Size: 70mm
Connection: ANSI B 16.5 2" Class 150
Overall Length: 75mm
Weight: 2.8KG
Max Operating Pressure: 25BAR/363PSI
Max Connection Pressure: 25BAR/363PSI
Min/Max Operating Temperature: -40C to +150C
Body Material: SS 316L
