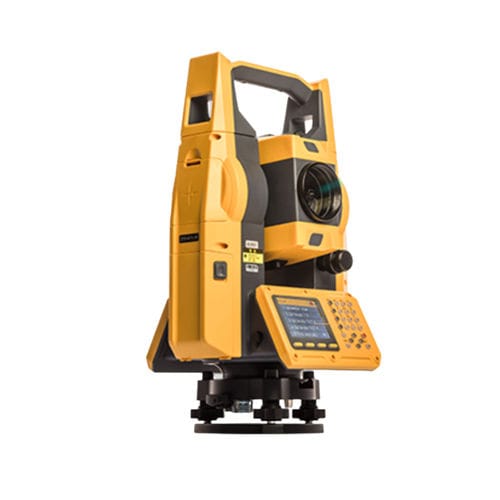

Reflectorless total station HTS-521 L10

with prismwaterproofBluetooth

HTS-521L10 adopts a high-definition color screen to provide better human-computer interaction. The new optical design and absolute coding technology improve the measurement performance. High-precision compact bead shafting and sealed encoder disk enhance accuracy and stability. Built-in abundant measurement programs and comprehensive maintenance procedures will provide a new measurement experience. Longer Range and More Stable Precision HTS-521L10 has a new optical structure design. It adopts a new ranging algorithm and cooperates with high-quality electronic and optical components. The reflectorless range is up to 1000m with 3+2ppm accuracy. The prism mode range is farther than 6000m with 2+2ppm accuracy. Colorful Display 2.8-inch and 240*320 pixels high-brightness color display is still clearly visible under the strong sunlight. The rubber keys have a backlight display, which makes operation clear in dark environment. Trigger Key The data can be acquired by trigger key with one click, which improves the speed and accuracy of the measurement greatly. High Precision and Stability High-precision bead shafting. Sealed encoder disk. Product Parameters Reflectorless 1000m 3+2 PPM Prism Mode 6000m 2+2 PPM Range and Accuracy Real-time Operating System Operating System 2” Angle Accuracy 80000 points Memory Dual-axis Liquid Tilt Sensor Tilt Sensor -20°C~50°C Work Temperature
