Monitoring USV HydroBoat 1500

multi-sensorbathymetric monitoringautonomous

Product overview

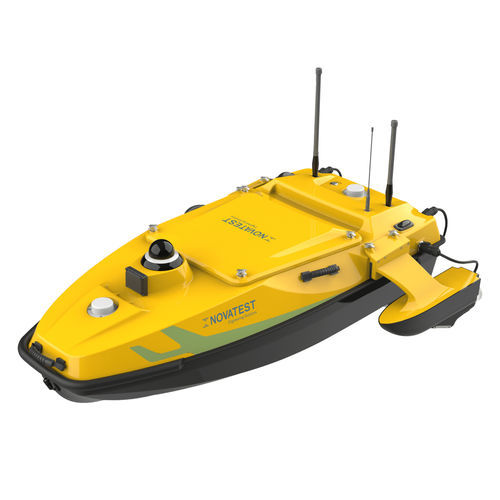

The HydroBoat 1500 is an unmanned surface vehicle (USV) designed for high-resolution bathymetric and hydrographic surveys in lakes, rivers and reservoirs. Its carbon-fiber trimaran hull with rubber bumper and IP67 protection offers field-proven resistance up to wind force 4 and wave level 3 while providing a stable platform for hydrographic sensors.

Navigation and positioning
Equipped with a high-precision GNSS receiver and a 200 Hz IMU, the HydroBoat 1500 delivers reliable positioning and heading information even during temporary satellite signal blockage. Four lateral brushless thrusters provide precise, rudderless steering and excellent manoeuvrability for survey lines and tight manoeuvres.

Safety and control
Safety systems include a 360° omnidirectional camera, millimeter-wave radar for anti-collision detection and a double-layer anti-sink hull design. The vessel is controlled via the SLHydro USV Android software with dual-channel 4G + 2.4G communications to support both local and beyond-line-of-sight operations.

Payload capacity
Maximum payload capacity is 60 kg with a through-hull mounting option compatible with common hydrographic sensors: HydroBeam M4 multibeam echosounder, integrated single-beam echosounder (SBES), side-scan sonar, ADCP, Norbit iWBMS, Ping DSP and similar instruments.

Typical applications

• Riverbed and lake basin morphology surveys
• Bridge foundation and slope scour inspection
• Dam and bank deformation monitoring
• Navigation channel and port topography surveys
• Environmental assessment and sediment monitoring
• Port safety and underwater obstacle detection

Main features

• Material: Carbon fiber hull with rubber bumper
• Configuration: Trimaran (1528 × 1034 × 494 mm) / Monohull (1528 × 694 × 494 mm)
• Weight (without battery): 40 kg
• Max payload: 60 kg
• Max speed: 5.7 m/s
• IP rating: IP67
• Environmental resistance: Wind force 4, wave level 3
• Propulsion: 4× lateral brushless thrusters (rudderless steering)
• Camera: 360° omnidirectional video
• Anticollision: Millimeter-wave radar (10–30 m)
• Battery endurance: 2 batteries = 4.5 h at 1.5 m/s (up to 6 batteries supported)
• Control: Android controller with SLHydro USV software, dual-channel 4G + 2.4G
• 2.4G range: 1.3 km
• GNSS: GPS, BDS, GLONASS, Galileo
• RTK accuracy: H: ±8 mm + 1 ppm / V: ±15 mm + 1 ppm
• Heading accuracy: 0.2° at 1 m baseline
• IMU: 200 Hz, 2.1°/h

Vehicle

• Dimensions – Monohull (L×W×H): 1528 × 694 × 494 mm
• Dimensions – Trimaran (L×W×H): 1528 × 1034 × 494 mm
• Weight (without battery): 40 kg
• Max payload: 60 kg
• Material: Carbon fiber, rubber bumper
• Weather resistance: Wind force 4 / Wave level 3
• IP rating: IP67
• Light indicator: Two-color light
• Camera: 360° omnidirectional video
• Anticollision sensor: Detection range 10–30 m
• Thruster: 4× brushless thrusters
• Directional control: Rudderless steering
• Max speed: 5.7 m/s
• Battery endurance: 2 batteries = 4.5 h at 1.5 m/s (6 batteries total)

Controller

• Operating system: Android
• Software: SLHydro USV
• Operating range: 1.3 km on 2.4 GHz / Unlimited on 4G (network dependent)

GNSS performance

• Satellite systems: GPS, BDS, GLONASS, Galileo
• RTK accuracy: H: ±8 mm + 1 ppm RMS / V: ±15 mm + 1 ppm RMS
• Heading accuracy: 0.2° at 1 m baseline
• INS accuracy: 2.1°/h, <1 m/20 s
• Update rate: 200 Hz

Software (SLHydro USV – Android controller)

• Mission planning and vessel monitoring
• Coordinate conversion
• Bathymetric data acquisition
• Bathymetric data download

Expandable sensors

• Multibeam echosounder (MBES) – HydroBeam M4
• Singlebeam echosounder (SBES)
• Norbit iWBMS
• Ping DSP
• Side-scan sonar
• ADCP

Accessories (included / available)

• HydroBoat 1500 – Qty 1: Built-in Mini-PC, GNSS antenna ×2, camera, mm-wave radar, integrated SBES
• Flank propellers – Qty 2: 1× left + 1× right
• 2.4G antenna – Qty 1: RC-NJ-2425-417 mm
• 4G antenna – Qty 1: LTE-NJ-0827-320 mm
• UHF antenna – Qty 1: UHF-460-TNC-300 mm
• Battery charger – Qty 3: Input: 100–240 V, European plug
• Batteries – Qty 6: 28.8 V / 34.3 Ah (typical)
• Battery maintenance manual – Qty 3–6: Rechargeable lithium-ion
• Battery transport case – Qty 6: YFZ-2023-3819
• Controller box – Qty 1: Android controller + Type-C charger + strap
• Toolkit – Qty 4: Tweezers, pliers, screws, hex keys
• Propeller protection grids – Qty 4: Metal anti-weed grid
• Forceps – Qty 1: Cleaning tool
• Multibeam seals – Qty 1: Ø 20 cm
• Cross ties – Qty 2: Anti-knock protection
• SLHydro USV software – Qty 1: Pre-installed on controller
• USV transport case – Qty 1: 1805×825×955 mm

Technical specifications

• Model: HydroBoat 1500
• Material: Carbon fiber hull with rubber bumper
• Configurations: Trimaran and Monohull
• Dimensions Trimaran: 1528 × 1034 × 494 mm
• Dimensions Monohull: 1528 × 694 × 494 mm
• Weight (without battery): 40 kg
• Max payload: 60 kg
• Max speed: 5.7 m/s
• IP rating: IP67
• Environmental resistance: Wind force 4, wave level 3
• Propulsion: 4 lateral brushless thrusters (rudderless steering)
• Camera: 360° omnidirectional
• Anticollision: Millimeter-wave radar (10–30 m)
• Battery endurance: 2 batteries = 4.5 h at 1.5 m/s (up to 6 batteries supported)
• Communication: Android controller, SLHydro USV software, 4G + 2.4G dual-channel
• 2.4G operating range: 1.3 km; 4G: unlimited (dependent on network)
• GNSS: GPS, BDS, GLONASS, Galileo
• RTK accuracy: Horizontal ±8 mm + 1 ppm; Vertical ±15 mm + 1 ppm
• Heading accuracy: 0.2° at 1 m baseline
• IMU: 200 Hz, 2.1°/h
