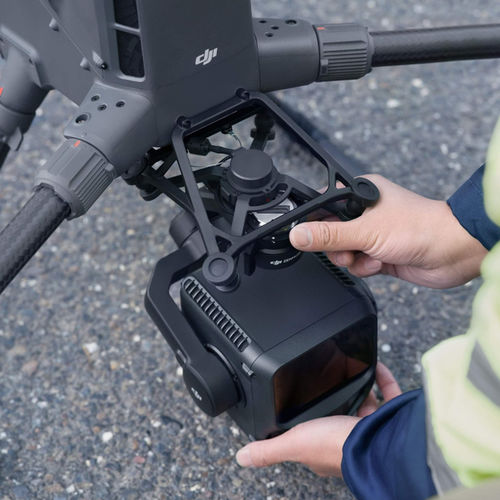

Obstacle detection LIDAR sensor DJI Matrice 400 + Zenmuse L3

for mappingTOFhigh-resolution

Overview
DJI’s first long-range, high-accuracy aerial LiDAR system. 950 m detection range, dual 100 MP cameras, 59-minute flight endurance. The DJI Matrice 400 + Zenmuse L3 is the benchmark enterprise solution for high-accuracy aerial topographic surveying, combining a 1535 nm LiDAR with dual 100 MP RGB mapping cameras and integrated DJI ecosystem tools for mission planning and data processing.

Key capabilities

• Long-range 1535 nm LiDAR with up to 950 m range at 10% reflectivity (100 kHz) and up to 2000 m at 80% reflectivity.
• Laser spot reduced to one-fifth the size of the previous Zenmuse L2; up to 16 returns per pulse; pulse frequencies: 100 / 350 / 1000 / 2000 kHz.
• Dual 100 MP (12288×8192) RGB mapping cameras with combined horizontal FOV 107° (two 4/3" CMOS sensors), mechanical shutter, average GSD ~3 cm at 300 m.
• High positional accuracy with microsecond-level time synchronisation: system accuracy 3 cm vertical and 4 cm horizontal (RMSE at 120 m); POS rate 200 Hz; RTK corrections (D-RTK 3) supporting cm-level accuracy.
• Excellent vegetation penetration (1535 nm, high per-pulse energy density), multiple scanning modes (Linear, Star-Shaped, Non-Repetitive) and wide FOV, ideal for forest and sub-canopy mapping.
• Long endurance when paired with the DJI Matrice 400: up to 59 minutes; high payload capacity (6 kg) and IP55-classified aircraft for all-weather operations; integrated obstacle sensing (rotating LiDAR + mmWave radar) with wire detection.
• Large-area productivity: a single mission at 300 m can cover up to 10 km² (daily up to 100 km² at 15 m/s), enabling efficient cadastral, infrastructure and forestry surveys.

Applications

• Topographic surveys and high-accuracy aerial mapping (DOM, DEM, coloured point clouds)
• Large-area cadastral and infrastructure monitoring
• Forestry: timber volume estimation, sub-canopy terrain mapping
• Agricultural and environmental surveys

Integration & Ecosystem

• Designed to operate on the DJI Matrice 400 platform (compatible aircraft).
• Integrated with DJI software ecosystem for mission planning and post-processing: Pilot 2, DJI Terra (LiDAR processing and photogrammetry), DJI Modify (point cloud processing) and FlightHub 2 (fleet & mission management).
• Accessories and support include D-RTK 3 GNSS reference station, Zenmuse L3 single gimbal connector adapter, DJI RC Plus 2 Enterprise Edition controller, TB65 intelligent batteries, Manifold 3 edge computing, and DJI Care Enterprise service options.

Specifications

• Compatible aircraft: DJI Matrice 400
• Sensor weight: 1.60 kg (without connector) + 145 g connector
• Dimensions (L×W×H): 192 × 162 × 202 mm
• Power: 64 W typical / 100 W max
• Ingress Protection: IP54 (Zenmuse L3) | IP55 (Matrice 400)
• Operating temperature: -20°C to +50°C
• Accuracy (120 m): 3 cm vertical RMSE | 4 cm horizontal RMSE
• Accuracy (300 m): 5 cm vertical RMSE | 7.5 cm horizontal RMSE
• Point cloud thickness: 1.2 cm @1σ (120 m) | 2 cm @1σ (300 m)
• Daily coverage: Up to 100 km² (300 m, 15 m/s, M400)
• LiDAR wavelength: 1535 nm
• Beam divergence: 0.25 mrad (1/e²) — 1/5 spot of Zenmuse L2
• Max range: 950 m @10% reflectivity (100 kHz); 700 m @10% (350 kHz); 2000 m @80%
• Range by frequency: 2000 kHz: 290 m | 1000 kHz: 400 m | 350 kHz: 700 m | 100 kHz: 950 m
• Wire detection: up to 300 m (ACSR 21.6 mm) | 100 m (PVC 18.4 mm) — (conditions: 100 klx, 350 kHz)
• Ranging accuracy: ±10 mm absolute | <5 mm repeatability (1σ) @150 m
• Pulse frequencies: 100 / 350 / 1000 / 2000 kHz
• Returns per pulse: up to 16 (100/350 kHz); 8/4 (1000 kHz); 4 (2000 kHz)
• Cross-cycle calculation: 7×
• Scanning modes: Linear 80°×3° | Star-Shaped 80°×80° | Non-Repetitive 80°×80°
• Laser class: Class 1 (IEC 60825-1:2014)
• RGB camera: Dual 4/3" CMOS sensors (×2 cameras)
• Camera resolution: 100 MP (12288×8192) and 25 MP (6144×4096)
• Combined FOV: 107° horizontal — two cameras, optical axes 45°
• Focal length equiv.: 28 mm | Aperture: f/2.0 – f/11
• Average GSD (300 m): 3 cm (1:1000 scale guaranteed)
• Shutter: Mechanical 2 – 1/2000 s | 500,000 cycles
• Video: 4K 3840×2160@30fps | FHD 1920×1080@30fps (HEVC/H.265)
• POS & gimbal: POS rate 200 Hz
• RTK accuracy (H): 1.0 cm + 1 ppm | RTK accuracy (V): 1.5 cm + 1 ppm
• Attitude error: Yaw 0.02° (1σ) | Pitch/Roll 0.01° (1σ)
• Gimbal axes: 3-axis (pitch, roll, yaw)
• Angular accuracy: ±0.01°
• Memory: CFexpress Type B ≥ 1,500 MB/s write
• DJI Matrice 400 endurance: 59 min (with H30T, sea level, 10 m/s)
• Matrice 400 MTOW: 9,740 ±40 g (with batteries) | 5,020 ±20 g (without)
• Payload maximum (M400): 6 kg
• Transmission: O4 Enterprise Enhanced: 20 km CE | 40 km FCC
• Payload ports: 4× E-Port V2 — up to 7 simultaneous payloads
• Obstacle sensing (M400): Rotating LiDAR + mmWave radar — wire detection at up to 25 m/s
• Hovering accuracy (RTK): ±0.1 m vertical | ±0.1 m horizontal
• Controller included: DJI RC Plus 2 Enterprise Edition (included)
