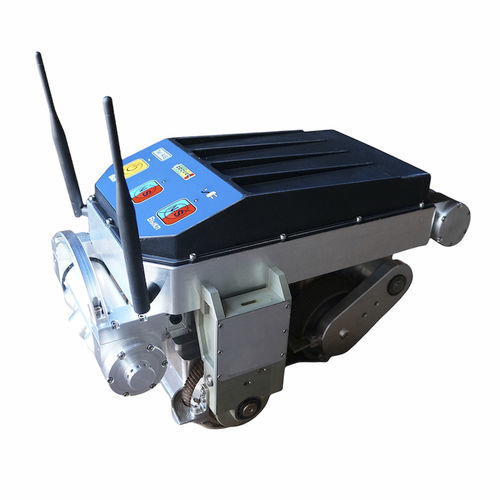

Ultrasonic flaw detector A2072

magneticfor pipelinesfor metal structures

In-line inspection autonomous robotized scanner-flaw detector The scanner can be inserted through the available manhole hatches, spark plug lines starting from DN 300 mm, access holes 320х240 mm. In-line inspection of pipelines is provided without additional clean-up operations, at that the scanner moves in a path along the pipe passing-by the contaminated areas. Inspection of base metal and welded joints of the pipeline elements using a television-optical system (visual and dimensional inspection) and antenna arrays with acoustic transducers with dry point contact (guided wave ultrasonic inspection, shear horizontal wave; SH wave). The scanner can be inserted through the available manhole hatches, spark plug lines starting from DN 300 mm, access holes 320х240 mm. Ultrasonic inspection unit is based on ultrasonic transducers with dry point contact (DPC) allowing transmitting and receiving of ultrasonic waves in the wall of pipe without contact liquid – only by means of friction between the ceramic protector of the transducer and metal surface. A set of 32 DPC transducers forms an antenna array (AA) phased in the desired direction and shaping guided ultrasonic waves in the wall of pipe. Frequency range is from 20 to 80 kHz (search for flaws with a height of more than 10% of thickness of the wall of pipe, effective inspection length is up to 4 000 mm). Television-optical system of the scanner provides in-process visual examination during in-line inspection. Television-optical system includes an HD camera with a 5 megapixel matrix and a camera lens with 180 degree pickup angle, two LED spotlights and sweep drive of the module in a vertical plane.
