Eddy current flaw detector EDDY SENSE

for pipelinesfor NDTfor railroads

Description

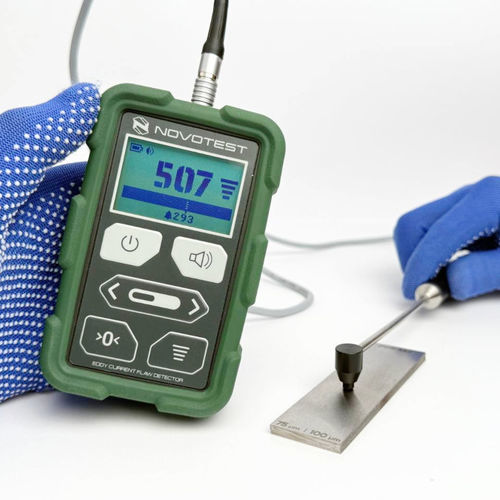

The NOVOTEST EDDY SENSE is a portable eddy-current flaw detector designed for high-sensitivity detection of surface defects. The instrument locates very small cracks, stress-corrosion cracking and other surface discontinuities on ferromagnetic and non-ferromagnetic conductive materials (1–50 MS/m). It features a graphic display, visual and audible alarms, rapid sensitivity adjustment and is intended for inspections in workshop and field environments.

Applications

• pipelines
• pressure vessels
• turbine blades
• shafts
• mechanical components
• Oil & Gas facilities
• power plants
• petrochemical industry
• railway maintenance
• aerospace applications

Accessories

• Electronic unit
• Straight probe
• L-shaped probe
• Calibration reference sample
• Connection cable
• Rechargeable AA batteries
• Battery charger
• Protective silicone cover
• PC interface cable
• Carrying case
• Operating manual

Technical specifications

• Eddy current inspection technology
• Suitable for ferromagnetic and non-ferromagnetic materials
• Conductivity range: 1–50 MS/m
• Operating frequency: 1–3.5 MHz
• Minimum crack opening: 2 μm
• Minimum detectable depth: 0.3 mm
• Minimum crack length: 4 mm
• Maximum scanning speed: 50 mm/s
• Graphic display: 128×64 pixel
• Audible and visual alarms
• Power: 2 rechargeable AA batteries
• Battery life: up to 20 hours
• Protection rating: IP54
• Dimensions: 122×76×37 mm
• Weight: 250 g
• Operating temperature: -20 to +40 °C
