Localization solution TruePoint.CM

Overview

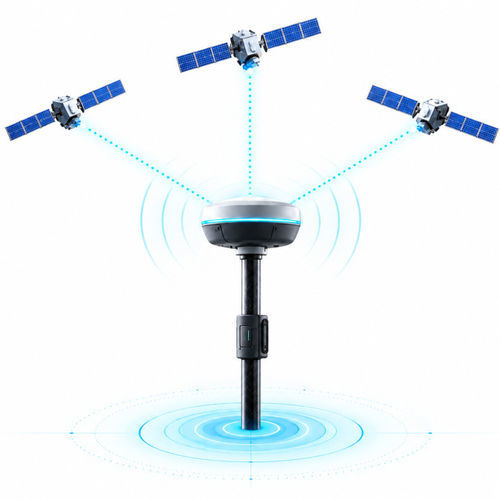

TruePoint.CM is a real-time GNSS correction service designed for professional applications that require centimeter-level accuracy, continuous operation and high reliability. It uses a network of permanent reference stations and Network RTK technology with a VRS (Virtual Reference Station) solution to deliver the correction data that GNSS receivers need to compute precise positions. Connections are provided via NTRIP 1.0 and NTRIP 2.0, widely supported by professional GNSS equipment.

Service Performance

• Horizontal accuracy: up to 2 cm RMS
• Vertical accuracy: up to 3 cm RMS
• Service availability: over 99.9%
• Operation: continuous, 24/7
• Update rate: corrections transmitted every 1 second (1 Hz)

Supported constellations and compatibility
Supports GPS, Galileo, GLONASS, BeiDou and QZSS. Compatible with professional GNSS receivers, modules and chipsets capable of receiving RTCM corrections via NTRIP.

Applications

• Land surveying and mapping
• UAV (drone) surveying and inspections
• Precision agriculture

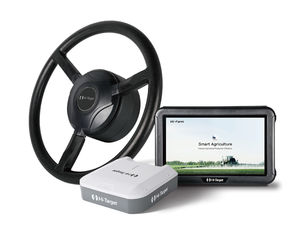

• Machine guidance and control
• Robotics and autonomous systems
• Infrastructure monitoring and management
• Any application requiring real-time GNSS positioning

Coverage
Coverage includes Europe, the United States, Australia and New Zealand. For European applications, support for the ETRS89 reference system is available.

Technical specifications

• Service name/model: TruePoint.CM
• Type: Real-time GNSS correction service (Network RTK, VRS)
• Protocols: NTRIP 1.0 and NTRIP 2.0
• Correction format: RTCM (receiver compatibility)
• Supported constellations: GPS, Galileo, GLONASS, BeiDou, QZSS
• Horizontal accuracy: up to 2 cm RMS
• Vertical accuracy: up to 3 cm RMS
• Service availability: over 99.9%
• Operation: continuous (24/7)
• Update rate: 1 Hz (corrections every 1 second)
• Coverage regions: Europe, USA, Australia, New Zealand
• Reference system support (Europe): ETRS89
