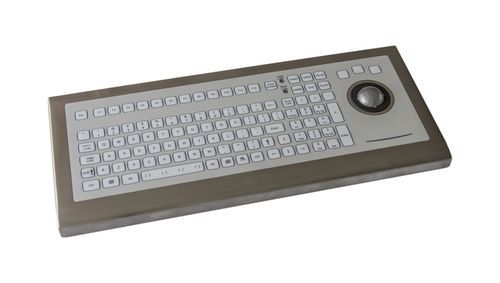

Desktop keyboard KSTM105RVS

membrane105-keywith trackball

Overview
IP65 sealed hygienic keyboard designed for the food processing industry. Integrated 38 mm laser waterproof trackball which is removable for easy maintenance. 105 short travel switches with low pressure and positive tactile feedback. All-stainless-steel enclosure with a waterproof breathable membrane on the backside to maintain a dry environment inside the housing. Design optimized to reduce contamination and to allow operation with gloves.

Product code
KSTM105RVS

Standard available types

• KSTM105RVS0001USB - US Qwerty
• KSTM105RVS0007USB - Cyrillic Russian
• KSTM105RVS0032USB - Belgian Azerty
• KSTM105RVS0033USB - French Azerty
• KSTM105RVS0047USB - Norwegian Qwerty
• KSTM105RVS0049USB - German Qwertz

Typical keyboard applications

• Food industry – automation
• Breweries
• Industrial bakeries
• Vegetable processing plants
• Meat processing plants
• System integrators specialised in this market
• Restaurant applications
• And much more

Specifications / technical data

• Sealing: IP65 sealed
• Keys: 105 short travel keys
• Pointing device: 38 mm waterproof laser trackball (removable)
• Operating temperature: 0°C to +60°C
• Output: detachable 2 m shielded USB cable, IP68, ended by a Type A connector
• Housing: stainless steel
• Front layer: polyester, chemical resistant
• Supply voltage: +5V ±5% (via keyboard port)
• Supply current: 200 mA max.
