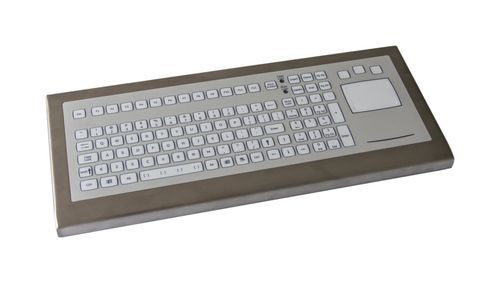

Desktop keyboard Food keyboard with touchpad

panel-mountmembrane105-key

Product overview

• IP65 sealed cleanable keyboard for hygienic environments
• Integrated multi‑finger touchpad operable with gloves
• 105 short‑travel keys with low actuation force and tactile feedback
• All stainless steel enclosure with flat front surface
• Waterproof breathable membrane on the rear to maintain a dry internal environment
• Design minimised to reduce contamination and enable easy cleaning

Application notes
Designed specifically for food processing environments and hygienic production lines. The integrated waterproof touchpad supports multi‑finger gestures and glove operation. The rear breathable membrane preserves a dry interior while the enclosure remains sealed to IP65, facilitating routine washdowns and contamination control.

Standard available types

• KSTP105RVS0001USB - US Qwerty
• KSTP105RVS0007USB - Cyrillic Russian
• KSTP105RVS0032USB - Belgian Azerty
• KSTP105RVS0033USB - French Azerty
• KSTP105RVS0047USB - Norwegian Qwerty
• KSTP105RVS0049USB - German Qwertz

Other standard keyboard versions
Desktop food keyboard with trackball (variant KSTM105RVS) and panel‑mount keyboard with touchpad (variant KSTP105) are available as alternative standard versions.

Typical keyboard applications

• Food industry – automation
• Breweries
• Industrial bakeries
• Vegetable processing plants
• Meat processing plants
• System integrators specialising in this market
• Restaurant and catering applications

Technical specifications

• Sealing: IP65 sealed
• Keys: 105 short travel keys
• Pointing device: multi‑touch touchpad, glove‑compatible
• Operating temperature: 0°C to +60°C
• Output: detachable 2 m shielded USB cable, IP68, terminated with Type A connector
• Housing: stainless steel
• Front layer: polyester, chemical resistant
• Supply voltage: +5V ±5% (via keyboard port)
• Supply current: 200 mA max.
