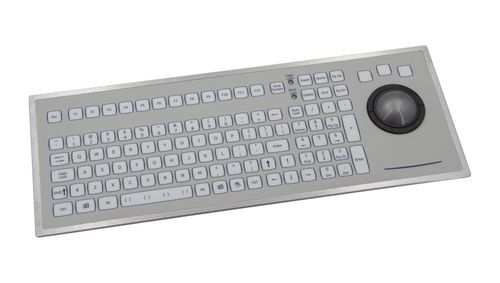

Desktop keyboard KSTL105

panel-mountmembrane105-key

Product overview

• IP67 sealing
• 105 short-travel switches with low actuation force
• Positive tactile feedback
• Integrated 50 mm laser waterproof trackball
• Removable trackball for easy maintenance
• Panel-mount version available with or without covering bezel for edge protection

Sealing & mounting
A silicon sponge seal is fitted to ensure perfect sealing into the user's panel.
The keyboard is secured by fourteen M3 threaded studs.
Bezel option: recommended when the keyboard cannot be flush-mounted to protect the panel edge.

Keyboard connectivity
USB versions are supplied with a 1.6 m shielded straight cable terminated by a USB Type-A connector.
PS/2 versions are supplied with two 1.6 m shielded straight cables terminated by 6-pin mini-DIN plugs.

Standard keyboard country layouts

• US Qwerty
• Russian Cyrillic
• Belgian Azerty
• French Azerty
• Spanish Qwerty
• Norwegian Qwerty
• German Qwertz
• Others

Similar standard versions available
Desktop keyboard with trackball: KSTL105S
Panel mount keyboard with touchpad: KSTP105 range

Easy customization possible

• Other keyboard country layouts
• Add your logo
• ...

Technical specifications

• Operating temperature: 0°C to +60°C
• Output: PS/2 or USB
• Front layer: polyester, chemical resistant
• Carrier plate: aluminium
• Supply voltage: +5V ±5% (via keyboard port)
• Supply current: 200 mA max.
