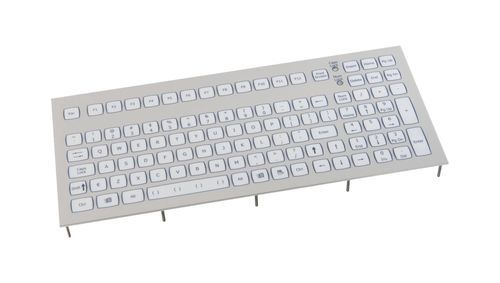

Panel-mount keyboard KST102

membrane103-keyfor control panels

Product overview

• IP65 sealed industrial panel-mount keyboard
• 102 short-travel switches, 103 short-travel keys
• Low actuation force with positive tactile feedback (2.55 N)
• IP65-grade silicone sponge seal included for panel sealing

General technical specifications
Sealing: total unit IP65 frontal sealing
Keys: 103 short-travel keys, 0.3 mm travel, actuation force 2.55 N
Operating temperature: 0°C to +60°C
Output: 1.6 m PS/2 or USB cable
Front layer: polyester, chemical resistant
Carrier plate: aluminium
Supply voltage: +5V ±5% (via keyboard port)
Supply current: 60 mA max.

Keyboard connectivity
PS/2 versions supplied with a 1.6 m shielded straight cable terminating in a 6-pin mini-DIN plug.
USB versions supplied with a 1.6 m shielded straight cable terminating in a USB Type-A connector.
Included silicone sponge seal ensures perfect sealing into the user's panel.
Twelve M3-threaded studs for panel mounting.

Other version
This keyboard is also available as a desktop version, see KST102S.

Technical specifications

• Product code: KST102
• Sealing: total unit IP65 frontal sealing
• Switches / Keys: 102 short-travel switches / 103 short-travel keys, 0.3 mm travel, 2.55 N
• Key feel: Low actuation force with positive tactile feedback
• Added seal: IP65-grade silicone sponge seal included
• Operating temperature: 0°C to +60°C
• Output / Cable: 1.6 m PS/2 or USB cable (PS/2 with 6-pin mini-DIN; USB with Type-A)
• Front layer: Polyester, chemical resistant
• Carrier plate: Aluminium
• Supply voltage: +5V ±5% (via keyboard port)
• Supply current: 60 mA max.
• Mounting: Twelve M3-threaded studs
