cup anemometer

Add to MyDirectIndustry favorites

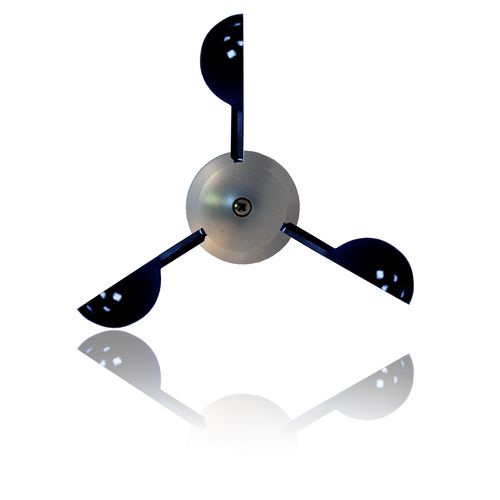

cup anemometer cup anemometer - ANTC-V2.2


  • Technology:


  • Air velocity:

    Max.: 200 km/h (124.27 mph)

    Min.: 2 km/h (1.24 mph)


ANTC-V2.2 is an anemometer, which meets every requirement of use in electronics. Is in fact equipped with its own programmable logic and, thanks to a large range of power supply, from 10 to 30Vdc, can be used for any on-board detection of wind turbines in the presence of sources of power from batteries 12 and 24 vdc vdc.
Its output signal can be configured for pulse output, voltage output 0-5 / 1-5 / 0-10 / 2-10 Vdc, current output 0-20 / 4-20 mA.
The Anemometer ANTC-V2.2 has been specifically designed for industrial applications such as:
Cranes and Mobile Cranes
Buildings and general structures
Photovoltaic solar trackers
Wind turbines
Weather Stations
Irrigation systems
Automated greenhouses
Cable cars for ski plants
Cannons snow
Telescopic cranes
Platforms self-mounting
Structures for playgrounds
Ornamental fountains
Pressostatic structures
Highway tunnels and viaducts
The body of the rotor is machined aluminum. The head rotates on ball bearings. The cups are made of nylon shock-absorbent and easily interchangeable. It 'also features a convenient connector for connection. The count rate is via optical transducer, a digital encoder with 12 pulses per revolution.
