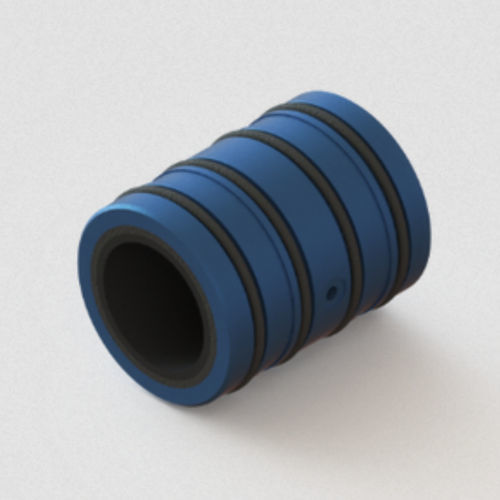

Radial plain bearing OAV040MBlinearair cushionaluminum
Add to favorites
Compare this product
Characteristics
- Type
- radial, linear, air cushion
- Material
- carbon, aluminum
- Applications
- for linear systems, for spindles
- Inside diameter
40 mm
(1.57 in)- Length
76.2 mm
(3 in)
Description
Used in spindle and linear applications. Made with 7075 aircraft quality aluminum housing.
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Input Pressure - .28 Mpa to .68 max Mpa (40 psi to 100 psi)
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifetime - Infinite
Radial Load Max - 593.8 N (133.5 lbs)
Radial Stiffness - 72 N/μm (0.41 lbs/μin)
Pitch Moment Max - 3.1 N-m (28 lbs-in)
Bushing Inside Diameter (ID) - 40.018 mm + .005/-.00
Bushing Outside Diameter (OD) - 59.59 mm + .13/-.00
Bushing Weight - 249.1 g
Recommended Shaft Outside Diameter (OD) - 40.00 mm + .00/-.02 (g6)
Flow Rate - 18.85 SCFH
Housing Bore Size O-Ring Method - 59.97 mm + .000/-.127
Housing Bore Size Light Press Fit Method - 59.630 mm + .000/-.025
Catalogs
Product Book & Design Guide
29 Pages
