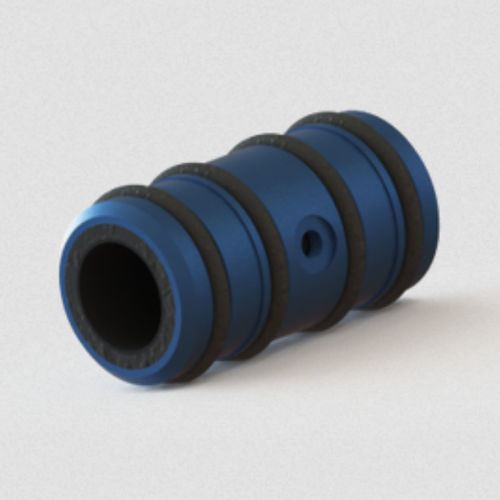

Radial plain bearing OAV010MBlinearair cushionaluminum
Add to favorites
Compare this product
Characteristics
- Type
- radial, linear, air cushion
- Material
- aluminum
- Applications
- for linear systems, for spindles
- Inside diameter
10 mm
(0.39 in)- Length
31.75 mm
(1.25 in)
Description
Used in spindle and linear applications. Made with 7075 aircraft quality aluminum housing.
Housing Materials/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Input Pressure - .28 Mpa to .68 max Mpa
Porous Material - Carbon
Pressure Port Threads - M3 x 0.5
Lifetime - Infinite
Radial Load Max - 20.6 N (4.6 lbs)
Radial Stiffness - 7 N/μm (0.04 lbs/μin)
Pitch Moment Max - 0.29 N-m (2.75 lbs-in)
Bushing Inside Diameter (ID) - 10.018 mm + .005/-.000
Bushing Outside Diameter (OD) - 16.10 mm + .13/-.00
Bushing Weight - 8.6 g
Recommended Shaft Outside Diameter (OD) - 10.00 mm + .00/-.02 (g6)
Flow Rate - 4.70 SCFH
Housing Bore Size O-Ring Method - 16.79 mm + .127/-.000
Housing Bore Size Light Press Fit Method - 16.125 mm + .000/-.025
