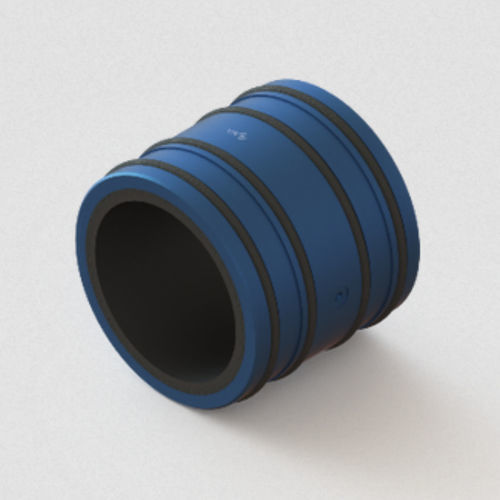

Radial plain bearing OAV075MBlinearair cushionaluminum
Add to favorites
Compare this product
Characteristics
- Type
- radial, linear, air cushion
- Material
- carbon, aluminum
- Applications
- for linear systems, for spindles
- Inside diameter
75 mm
(2.95 in)- Length
88.9 mm
(3.5 in)
Description
Used in spindle and linear applications. Made with 7075 aircraft quality aluminum housing.
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Input Pressure - .28 Mpa to .68 max Mpa (40 psi to 100 psi)
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifetime - Infinite
Radial Load Max - 1300.0 N (292.3 lbs)
Radial Stiffness - 159 N/μm (0.91 lbs/μin)
Pitch Moment Max - 7.1 N-m (63 lbs-in)
Bushing Inside Diameter (ID) - 75.018 mm + .005/-.000
Bushing Outside Diameter (OD) - 99.49 mm + .13/-.00
Bushing Weight - 688.1 g
Recommended Shaft Outside Diameter (OD) - 75.00 mm + .00/-.02 (g6)
Flow Rate - 35.42 SCFH
Housing Bore Size O-ring Method - 100.4 mm + .000/-.127
Housing Bore Size Light Press Fit Method - 99.525 mm + .000/-.040
