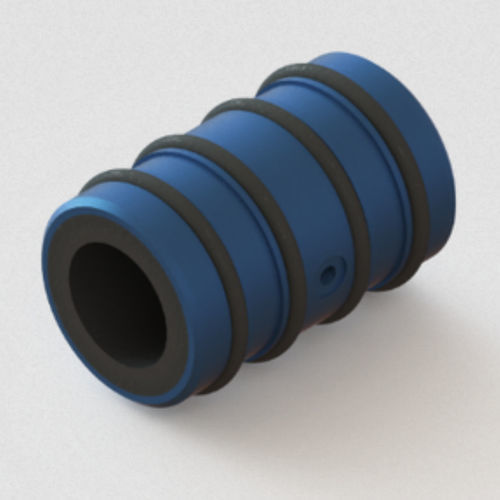

Radial plain bearing OAV020MBlinearair cushionaluminum
Add to favorites
Compare this product
Characteristics
- Type
- radial, linear, air cushion
- Material
- aluminum
- Applications
- for linear systems, for spindles
- Inside diameter
20 mm
(0.79 in)- Length
50.8 mm
(2 in)
Description
Used in spindle and linear applications. Made with 7075 aircraft quality aluminum housing.
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Input Pressure - .28 Mpa to .68 max Mpa (40 psi to 100 psi)
Porous Material - Carbon
Pressure Port Threads - M3 x 0.5
Lifetime - Infinite
Radial Load Max - 160 N (36.0 lbs)
Radial Stiffness - 23 N/μm (0.13 lbs/μin)
Pitch Moment Max - 1.1 N-m (10 lbs-in)
Bushing Inside Diameter (ID) - 20.018 mm + .005/-.000
Bushing Outside Diameter (OD) - 31.75 mm + .13/-.00
Bushing Weight - 49.1 g
Recommended Shaft Outside Diameter (OD) - 20.00 mm + .00/-.02 (g6)
Flow Rate - 9.42 SCFH
Housing Bore Size O-Ring Method - 32.130 mm + .000/-.127
Housing Bore Size Light Press Fit Method - 31.780 mm + .000/-.025
