Planetary gearbox WEP series
coaxialsolid-shaft200 - 500 Nm

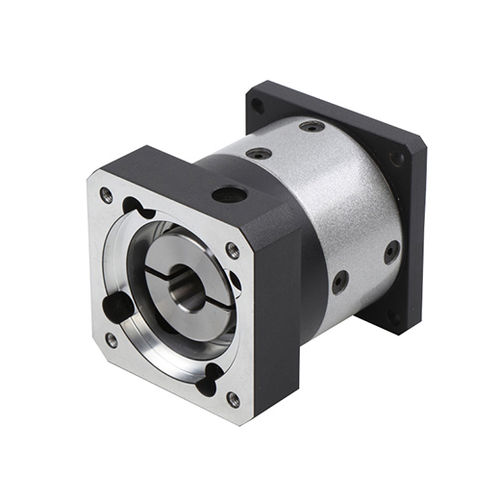

Planetary gearbox - WEP series - Ocean Industry - coaxial / solid-shaft / 200 - 500 Nm
Planetary gearbox - WEP series - Ocean Industry - coaxial / solid-shaft / 200 - 500 Nm
Planetary gearbox - WEP series - Ocean Industry - coaxial / solid-shaft / 200 - 500 Nm - image - 2
Planetary gearbox - WEP series - Ocean Industry - coaxial / solid-shaft / 200 - 500 Nm - image - 3
Planetary gearbox - WEP series - Ocean Industry - coaxial / solid-shaft / 200 - 500 Nm - image - 4
Add to favorites
Compare this product

Characteristics

Type
planetary
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Torque
200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 50 - 100 Nm, 20 - 50 Nm, 1 - 2 kNm, 2 - 5 kNm
Performance
precision
Applications
transmission, wheel, profile, shaft
Other characteristics
combined
Rotational speed

Max.: 6,000 rpm
(37,699.1118 rad.min-1)

Min.: 2,000 rpm
(12,566.3706 rad.min-1)

Backlash

Max.: 0.08 °

Min.: 0.05 °

Weight

Max.: 66 kg
(145.51 lb)

Min.: 1.7 kg
(3.75 lb)

Description

1.Using involute gear transmission, alloy steel with carbonize&quencher heat treatment, precision level of gear grinding could reach ISO class 5, the profile and axial modification could enhance the bearing capacity ,stability of mesh and low noise. 2.With integral output shaft and bearing support for both sides of planet wheel, realizing higher precision and higher rigidity. 3.Small backlash, the accurate single stage can reach within 3 arcmin as clients’ request. 4. Gyration parts of the input side with dynamic balance treatment can make sure the gearbox running steadily at high speed. 5.It can combined with any servo motor, can be designed for special combination, and easy for mounting. (It can be specially designed to accept any type of servo motor, mounting is convenient) 6. Simple for maintenance, it don’t need to change the oil(grease) during the service life time
