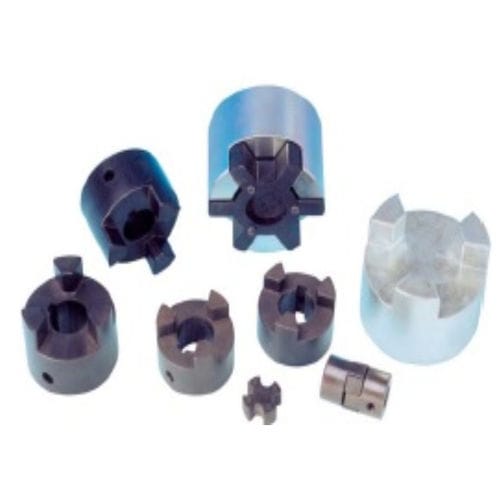

Flexible coupling BL seriestorque
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Other characteristics
- torque
- Torque
Max.: 3,161.76746 Nm
(2,332.000003 ft.lb)Min.: 4.77248 Nm
(3.520001 ft.lb)- Rotational speed
Max.: 31,000 rpm
(194,778.7445 rad.min-1)Min.: 4,000 rpm
(25,132.7412 rad.min-1)
Description
The L-coupling consists of two standard L-hubs and a spider standard L-coupling hub materials include powder metallurgy iron or cast iron.
L-couplings with simple design, easy installation and maintenance, and do not require lubrication.
It is able to accommodate both axial and radial misalignment, ensuring that it will still work in the event of misalignment.
The spider part is made of a variety of materials, such as SOX (NBR) rubber, to meet different application needs and torque requirements
