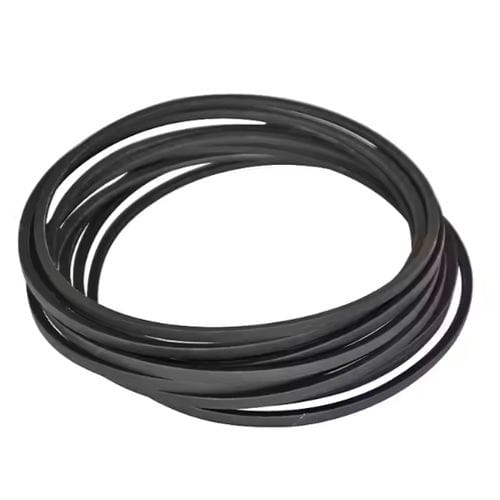

V belt

trapezoidalpolyesternylon

The Classical Belt is a fundamental and widely - adopted power transmission device. Engineered with precision, it has been a cornerstone in mechanical systems across numerous industries for its proven reliability and versatility. 2. Design and Structure Belt Body Rubber Composition: The main body of the Classical Belt is crafted from high - quality rubber. This rubber is formulated to possess optimal flexibility and durability. For instance, in many standard applications, neoprene rubber is used. Neoprene offers excellent resistance to abrasion, oils, and a wide temperature range. It can withstand the constant flexing and friction that occurs during operation, ensuring a long service life. Reinforcement Layers: Embedded within the rubber are reinforcement layers. These are typically made of strong materials such as polyester or nylon cords. The cords are arranged in a parallel fashion along the length of the belt. The polyester cords, known for their high tensile strength, provide the belt with the necessary strength to transmit power efficiently. They prevent the belt from stretching or breaking under load, maintaining the integrity of the power transmission system. Cross - Sectional Shape The Classical Belt has a trapezoidal cross - sectional shape. This design is crucial as it allows for better engagement with the pulleys. The angled sides of the trapezoid fit snugly into the corresponding grooves on the pulleys, minimizing slippage and ensuring efficient power transfer. The specific dimensions of the trapezoid, such as the top width, bottom width, and height, are standardized to ensure compatibility with a wide range of pulley sizes and types.
