Spur gear PC series

helical-toothedtransmissionprecision

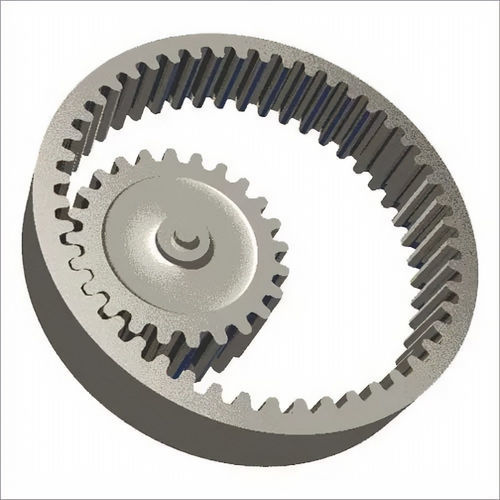

Product Description Ring Gear has a ring-shaped appearance and usually has an internal tooth or external tooth structure. The Ring Gear with external teeth can mesh with other gears for transmission. The internal tooth ring is often used in special transmission devices such as planetary gear mechanisms. It has high requirements for manufacturing precision. Deformation caused by the ring shape needs to be controlled to ensure gear precision and transmission performance. Type | Teeth Number | External Diameter | Internal Diameter --- | --- | --- | --- PC60-7 | 76 | 23 | 24 PC60-6 | 80 | 24 | 24 PC60-7 | 80 | 22 | 24 PC120-6 (4D102) | 90 | 34 | 38 PC120-6 (4D95) | 90 | 34 | 38 PC100-5 | 89 | 38 | 38 PC200-5 | 110 | 26 | 36 PC200-6 (MADE IN CHINA) | 110 | 32 | 36 PC200-6 (IMPORT) | 110 | 32 | 36 PC200-6 (6D95) | 110 | 32 | 36 PC200-7 | 110 | 32 | 36 PC200-7-92 | 92 | 32 | 36 PC300-5 | 90 | 36 | 40 PC300-6 | 90 | 36 | 40 PC400-6 | 84 | 35 | 40 SH200A3 | 92 | 31 | 35 SH200A1 | 92 | 31 | 36 CAT320B | 110 | 33 | 36 CTA320C | 110 | 42 | 40 EX120-5 | 88 | 36 | 36 EX200-5 | 92 | 36 | 36 ZAX210 | 92 | 32 | 36 EX270 | 83 | 36 | 36 DH220-5 | 92 | 36 | 36 R200-5 | 92 | 28 | 36 R225-7 | 92 | 30 | 36 ZAX230 | 83 | 36 | 36 HD700-5 | 92 | 36 | 36 HD700-7 | 92 | 36 | 36 CAT320L | 110 | 38 | 36 E200B | 110 | 33 | 36 SK60-3 | 75 | 25 | 30 SK200-3 | 110 | 33 | 36 SK200-6 | 110 | 33 | 36 SK200-8 | 110 | 31 | 36 SK230-6 | 82 | 33 | 36 SK07-1 | 110 | 32 | 36 SK07-2 | 110 | 32 | 36 SK07-N2 | 110 | 32 | 36 EX60-5 | 71 | 24 | 24 Technical Specifications / Features: - Ring-shaped gear with internal or external teeth - External teeth for meshing with other gears - Internal teeth for use in planetary gear mechanisms - High manufacturing precision required - Deformation control is critical for gear accuracy and transmission performance
