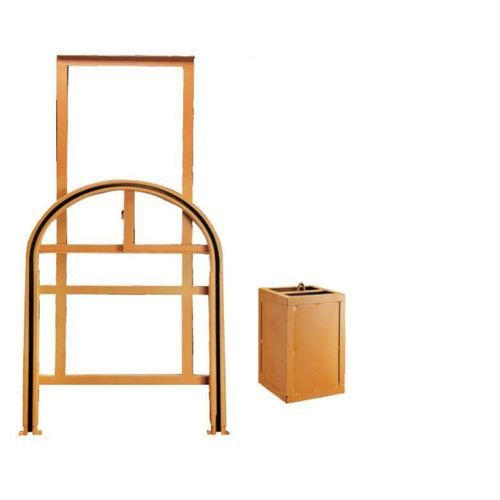

Belt assembly

carbon steelsteelstainless steel

Product Description The tensioning device is designed to ensure that the chain remains in its original tensioned state. It compensates for the tensile deformation of the chain under tension and for expansion and contraction caused by temperature differences. This ensures moderate tension between the driving device and the tensioning device. Typically, it is placed behind the transmission device at the point of lowest tension. After tensioning, there should be no significant downhill section with decreased load. The counterweight disk on this device automatically adjusts the chain's tightness, ensuring the normal operation of the driving device. The tensioning force is stable and suitable for a wide range of applications. Application - Long-distance Conveyors: Known for their simple structure and lower cost, heavy-duty take-up assemblies maintain constant tension and are suitable for fixed long-distance belt conveyors, providing a high safety factor. - Mine Conveyors: In mining, belt conveyors are commonly used for continuous transportation. Heavy-duty take-up assemblies ensure smooth operation, starting, and braking of the conveyor belt, preventing slippage and ensuring the belt's sag between idlers meets requirements. - Industrial Transportation Systems: In industrial transportation systems, these assemblies automatically compensate for the elastic and permanent elongation of the conveyor belt, ensuring constant tension and stable material transport. - Fixed Conveyors: For fixed conveyors, heavy-duty take-up assemblies provide constant tension with minimal maintenance, suitable for situations with less demanding tension requirements. - Belt Conveyors with Small Inclines: For belt conveyors with small inclines, these assemblies effectively adjust belt tension to ensure reliable operation, starting, and braking. - Heavy-Load Transportation Systems: In heavy-load transportation systems, heavy-duty take-up assemblies can provide sufficient tension to meet significant load and tension demands. Performance Characteristics - Frame: A robust structure that supports the entire assembly, often made of carbon steel or stainless steel for durability. - Take-Up Pulley: This pulley is crucial for maintaining belt tension. It can move vertically or horizontally depending on the design, allowing for adjustments as the belt stretches. - Counterweight: Attached to the take-up pulley, the counterweight helps maintain tension on the belt through gravitational force. The weight can be adjusted to accommodate different load requirements. - Adjustment Mechanism: This can be a threaded rod or a pulley system that allows for manual or automatic adjustments to the tension. Some designs feature telescoping or gravity mechanisms for ease of use. - Bearings: These support the take-up pulley and allow for smooth rotation, reducing friction and wear. Working Principle - Automatic Tensioning: As the conveyor belt stretches due to load or temperature changes, the counterweight allows the take-up pulley to move, automatically adjusting the tension. This self-tensioning feature helps prevent slippage and ensures smooth operation. - Gravity Mechanism: In gravity take-up designs, the counterweight pulls down on the belt, maintaining tension. The movement of the take-up pulley is guided by the slack in the belt, allowing it to adjust dynamically to changes in load. - Manual Adjustments: In some configurations, operators can manually adjust the tension using a threaded rod or other mechanisms. This is particularly useful during maintenance or when the belt is replaced. - Dynamic Response: The assembly can respond to sudden changes in load or belt tension, helping to prevent damage to the belt and other components. This is especially important in heavy-load applications where tension spikes can occur. FAQ - Q1: Are you trading company or manufacturer? A: We are factory. - Q2: How long is your delivery time and shipment? 1. Sample Lead-times: generally 15 workdays. 2. Production Lead-times: 30-60 workdays after getting your deposit. - Q3. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. - Q4: What are your advantages? 1. Manufacturer, the most competitive price and good quality. 2. Perfect technical engineers give you the best support. 3. OEM is available. 4. Rich stock and quick delivery. - Q5. If you can’t find the product on our website, what do you do next? Please send us inquiry with product pictures and drawings by email or other ways and we'll check. Technical Specifications / Features - Product type: Weighted Take-up Assembly - Applications: Long-distance conveyors, mine conveyors, industrial transportation systems, fixed conveyors, belt conveyors with small inclines, heavy-load transportation systems - Key components: Frame, take-up pulley, counterweight, adjustment mechanism, bearings - Automatic and manual tension adjustment - Material: Carbon steel or stainless steel (frame)
