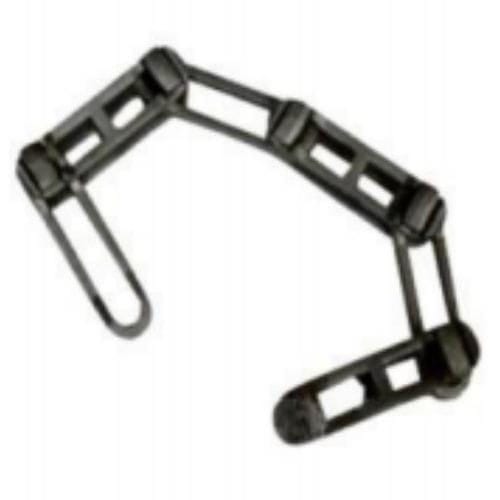

Transmission chain XT series

steelforgedscraper

Drop forged conveyor chain Product description The chain is the traction component of the conveyor. There are two types of chains for XT80, XT100, it can rotate arbitrarily in the horizontal and vertical directions. Product Specification Project TypePCα XT8080(76.2)1.5-2.5≥9° XT1001001.5-2.5≥9° XT1601602-4≥6° Product Properties XT80 Chain pitch: t=80/76.2mm Chain tensile load: 110KN Allowable chain tension: 10KN Maximum load of carriage: 300kg Allowable load of carriage: 125Kg Track: G10 or G12 Minimum horizontal turning radius: R305 Minimum vertical bending radius: R1500 XT100 Chain pitch: t=100mm Chain tensile load: 220KN Allowable chain tension: 15KN Ultimate load of carriage: 500kg Allowable load of carriage: 250Kg Track: G12 or G14 Minimum horizontal turning radius: R317 Minimum vertical bending radius: R2000 XT160 Chain pitch: t=160mm Chain tensile load: 400KN Allowable chain tension: 30KN Ultimate load of carriage: 800kg Allowable load of carriage: 500Kg Track: G14 or G16 Minimum horizontal turning radius: R404 Minimum vertical bending radius: R3150 Application Industrial production lines: In automobile, home appliance and machinery manufacturing, they are used for transporting parts and ensuring efficient production. Material handling equipment: Found in scraper conveyors, bucket elevators and overhead conveyors for transporting bulk materials and realizing efficient space utilization. Special equipment: Used in wet slag extractors in power plants and as crucial components of port cranes for heavy lifting. FAQ Q1: Are you trading company or manufacturer? A: We are factory. Q2: How long is your delivery time and shipment? 1. Sample Lead-times: generally 15 workdays.2. Production Lead-times: 30-60 workdays after getting your deposit. Q3. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Q4: What is your advantages? 1. Manufacturer, the most competitive price and good quality.2. Perfect technical engineers give you the best support.3. OEM is available.4. Rich stock and quick delivery. Q5. If you can’t find the product on our website, what do you next? Please send us inquiry with product pictures and drawings by email or other ways and we'll check. Technical Specifications / Features Chain types: XT80, XT100, XT160 Horizontal and vertical rotation capability Chain pitch: 80/76.2mm, 100mm, 160mm Chain tensile load: 110KN, 220KN, 400KN Allowable chain tension: 10KN, 15KN, 30KN Maximum/Ultimate load of carriage: 300kg, 500kg, 800kg Allowable load of carriage: 125kg, 250kg, 500kg Tracks: G10, G12, G14, G16 Minimum horizontal turning radius: R305, R317, R404 Minimum vertical bending radius: R1500, R2000, R3150
