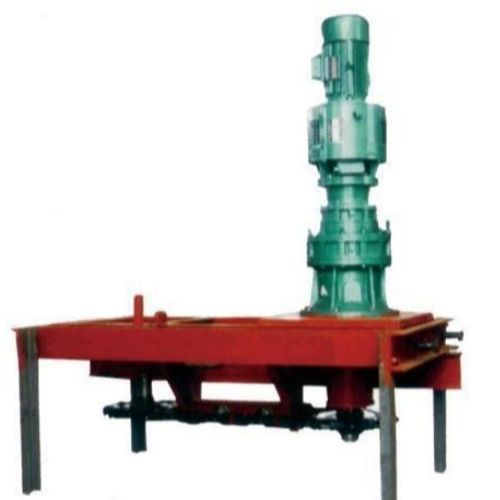

Drive unit XT series

Linear drive unit Product description The device adopts a direct-coupled cycloidal pinwheel reducer transmission structure, which has high transmission efficiency and reliable movement. The drive frame is divided into inner and outer frames. When unexpected situations such as resistance overload occur, the inner frame moves relative to the outer frame, and the travel switch operates for electrical protection. The transmission device should be arranged high on the line with greater tension, and the convenience of hanging and maintenance should also be considered. Product Specification Project Type: A1, A, B1, B, L XT80: 1586, 1640, 750, 1000, ≤1472 XT100: 1586, 1640, 750, 1000, ≤1472 XT160: 1771, 1825, 820, 1000, ≤1560 Application Industrial automation: - In CNC machines, ensure precise tool feed for machining. - On assembly lines, drive components for efficient assembly. - In automated warehouses, move shelves. - On conveyor belts, transport goods. Medical equipment: - In imaging devices, position scanning beds. - In surgical robots, drive instruments. - In rehabilitation equipment, aid patient training. Scientific research: - In material testers, test specimens. - In optical equipment, adjust optical paths. - In space research, deploy satellite components. Other fields: - In stage equipment, create effects. - In amusement facilities, provide power. FAQ Q1: Are you trading company or manufacturer? A: We are factory. Q2: How long is your delivery time and shipment? 1. Sample Lead-times: generally 15 workdays. 2. Production Lead-times: 30-60 workdays after getting your deposit. Q3. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Q4: What is your advantages? 1. Manufacturer, the most competitive price and good quality. 2. Perfect technical engineers give you the best support. 3. OEM is available. 4. Rich stock and quick delivery. Q5. If you can’t find the product on our website, what do you next? Please send us inquiry with product pictures and drawings by email or other ways and we'll check. Technical Specifications / Features - Transmission: Direct-coupled cycloidal pinwheel reducer - Frame: Inner and outer frame design for overload protection - Travel switch for electrical protection - Recommended installation: High tension line, easy maintenance - Types: XT80, XT100, XT160 - Dimensions (see table above)
