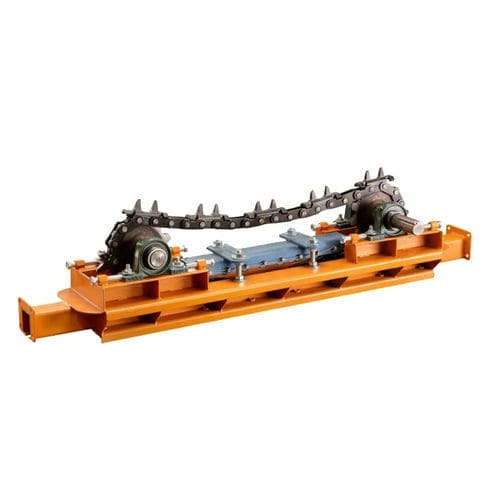

Chain transmission WT series

Product DescriptionThe principle is that the power output by the speed-regulating motor is transmitted to the driving track after being boosted by the reducer. The pawls on the driving track are used to move the conveying chain to make the chain move forward. The transmission is stable, with low noise and high reliability in transmitting power.Product SpecificationConveyor modelWT3 (X-348)WT4 (X-458)WT6 (X-678)WT80WT100WT160Single hanging point load kg10020060080500750Running speed M/min0.5~180.5~181~180.5~150.5~150.5~15Minimum hanging spacing mm306.4409.6612.4320400640Allowable tension of chain kg90015002700110015003000Ultimate load of chain kg109002180038600110002200040000Limit length of conveyor M450600750450500700Allowable load of slide carriage kg110018005000125025004000Ultimate load of slide carriage kg18003600770025005000800Hardness of roller road surface HRC>58>58>58>40>40>40Diameter of roller mm608212565100120Track type工8工10工16工10工12:工14工8:工16Minimum turning radius mmR300R450R600R203R317R404Minimum vertical radius mmR1200R1700R3400R1600R2000R3150Chain gauge mm648010075105125Chain weight kg2.995.769.433.754.709.24Chain pitch mm76.6102.4153.280100160ApplicationLogistics and warehousing: Handles heavy goods in warehouses and logistics centers.Used in sorting systems for efficient cargo handling.Painting production line: Ensures stability of workpieces during painting.Suspension conveying system: In factories, it creates aerial conveyor lines for efficient workpiece transport.In airports, it transports baggage.Construction: Transports construction materials at construction sites.Performance characteristics:Strong carrying capacity: With a load-bearing capacity of 5 tons, it can easily meet the transportation needs of heavy workpieces and equipment.Stable operation: The crawler design provides excellent stability. During operation, it can effectively reduce vibration and shaking and ensure the smoothness of transportation.Efficient transmission: The transmission system is efficient and reliable, and can evenly transmit power to the conveying device to improve production efficiency.Adapt to various environments: Whether on a flat workshop floor or under more complex terrain conditions, it can adapt well to ensure the normal operation of the equipment.Structural design:Sturdy material: The main structure is made of high-strength steel, which has good wear resistance and corrosion resistance and can withstand heavy loads for a long time without deformation.Reasonable layout: The design is compact and occupies a small space, which is convenient for installation on different production lines. At the same time, the layout of each component is reasonable, which is convenient for maintenance and repair.Crawler structure: The crawler is made of high-quality rubber or steel material, which has good wear resistance and tensile strength and can ensure long-term use.FAQQ1: Are you trading company or manufacturer? A: We are factory.Q2: How long is your delivery time and shipment? 1. Sample Lead-times: generally 15 workdays. 2. Production Lead-times: 30-60 workdays after getting your deposit.Q3. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.Q4: What is your advantages? 1. Manufacturer, the most competitive price and good quality. 2. Perfect technical engineers give you the best support. 3. OEM is available. 4. Rich stock and quick delivery.Q5. If you can’t find the product on our website, what do you next? Please send us inquiry with product pictures and drawings by email or other ways and we'll check.Technical Specifications / FeaturesProduct Name: 5T Caterpillar Drive UnitConveyor models supported: WT3 (X-348), WT4 (X-458), WT6 (X-678), WT80, WT100, WT160Load capacity: up to 5 tonsMaterial: High-strength steel, rubber or steel crawlerApplications: Logistics, warehousing, painting lines, suspension conveying, airports, constructionStable, low-noise, high-reliability transmissionAdaptable to various environments and terrains
