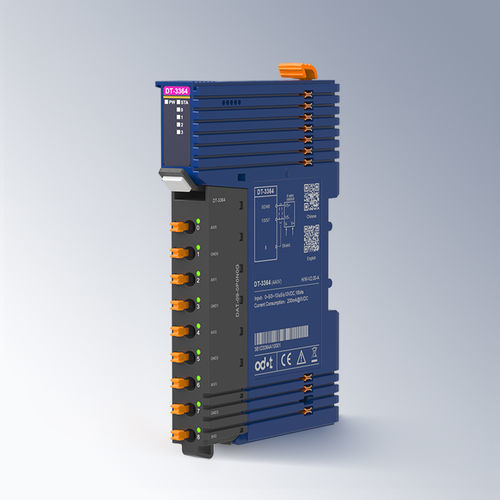

Analog input module DT-3364

4-channel4 analog inputsvoltage

Product Overview:4 Channels voltage input module 0~5VDC/0~10VDC/±5VDC/±10VDC, 16 bitsModule Features:The module supports 4 channels of voltage signal input.Input range: 0~5VDC, 0~10VDC, -5VDC~5VDC, -10VDC~10VDC voltage signal input, with 16 bits resolution.The module carries with 4 analog input channel LED indicator.The module input signal is isolated between channels.Module high speed redundant backplane bus with pluggable terminal blocks.Technical Parameters:General ParametersModule Consumption200mA@5VDCWirring DiameterMin.0.2mm²(AWG24)Max.1.5mm²(AWG16)Terminal PluggableSupportBackplane BusDouble bus redundancyInstallation35mm DIN-RailDimension119*14*80mmProduct CertificationCE CertificationInput ParametersChannel Number4 channels voltage inputInput Voltage Range0~5VDC/0~10VDC/±5VDC/±10VDCChannel IsolationSupportInput Impedance1MΩResolution16 Bits (include the symbol bit)Transmission Time4ms/ 4 channels (filter level is 0)Linearity Error≤±0.01%Temperature Error≤±0.005%/KRepeatability≤±0.05% (@25℃)Measurement Error≤±0.2% (@25℃), ≤±0.4% (@-35℃~60℃)Module DiagnosisADC fault: supportOverflow/Underflow: supportEnvironment ParametersHorizontal Installation Operating Temperature-35℃~60℃Vertical Installation Operating Temperature-35℃~50℃Storage Temperature-40℃~85℃Environment Humidity5%~95%RH (No condensation)Installation Altitude<2000mPollution DegreeⅡProtection GradeIP20Mechanical PropertiesComply with IEC60068-2-6, IEC6008-2-27Insulation WithstandComply with IEC61131-2EMC PerformanceComply with IEC61131-2, IEC61000-4(ESD: Contact discharge ±6kV, Performance level A; Air discharge ±8kV, Performance level A)SURGE: Common mode ±2kV, Performance level AEFT: ±2kV, Performance level AChannels: 4 voltage inputInput range: 0~5VDC, 0~10VDC, ±5VDC, ±10VDCResolution: 16 bitsInput impedance: 1MΩModule consumption: 200mA@5VDCInstallation: 35mm DIN-RailDimension: 119*14*80mmOperating temperature: -35℃~60℃ (horizontal), -35℃~50℃ (vertical)Storage temperature: -40℃~85℃Protection grade: IP20Certification: CE
