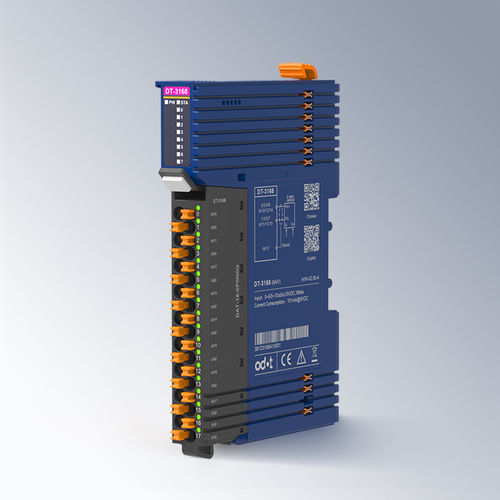

Analog input module DT-3168

8-channel8 analog inputscurrent

Product Overview: 8 Channels voltage input module 0~5VDC/0~10VDC/±5VDC/±10VDC, 16-bit Module Features: - The module supports 8 channels of voltage signal input - The module can collect 0~5VDC, 0~10VDC, ±5VDC, ±10VDC, with 16 bits resolution - The module carries 8 analog input channel LED indicators - The module input signal is a single-ended common grounding input - Filter time can be set - Channels can be disabled independently - Module features high-speed redundant backplane bus with pluggable terminal blocks Technical Parameters: General Parameters - Current Consumption: 157mA@5VDC - Wirring Diameter: Min.0.2mm² (AWG24), Max.1.5mm² (AWG16) - Terminal Pluggable: Support - Backplane Bus: Double bus redundancy - Installation: 35mm DIN-Rail - Dimension: 119*14*80mm - Product Certification: CE Certification Input Parameters - Channel Number: 8 channels voltage input - Input Voltage Range: 0~5VDC/0~10VDC/±5VDC/±10VDC - Resolution: 16 bits (including the symbol bit) - Transition Time: 3.87ms/8 channels (filter level is 0) - Input Impedance: 100kΩ - Linearity Error: ≤±0.01% - Temperature Error: ≤±0.005%/K - Repeatability: ≤±0.05% (@25℃) - Measurement Error: ≤±0.2% (@25℃), ≤±0.4% (@-35℃~60℃) - Module Diagnosis: ADC Fault: support, Overflow/Underflow: support Environment Parameters - Horizontal Installation Operating Temperature: -35℃~60℃ - Vertical Installation Operating Temperature: -35℃~50℃ - Storage Temperature: -40℃~85℃ - Environment Humidity: 5%~95%RH (No condensation) - Installation Altitude: <2000m - Pollution Degree: Ⅱ - Protection Grade: IP20 - Mechanical Properties: Comply with IEC60068-2-6, IEC6008-2-27 - Insulation Withstand: Comply with IEC61131-2 - EMC Performance: Comply with IEC61131-2, IEC61000-4 (ESD: Contact discharge ±6kV, Performance level A; Air discharge ±8kV, Performance level A; SURGE: Common mode ±2kV, Performance level A; EFT: ±2kV, Performance level A) Key Specifications: - 8 voltage input channels - Input ranges: 0~5VDC, 0~10VDC, ±5VDC, ±10VDC - 16-bit resolution - LED indicators for each channel - Single-ended common ground input - Configurable filter time - Individually disable channels - High-speed redundant backplane bus - Pluggable terminal blocks - CE certified - Operating temperature: -35℃ to 60℃ (horizontal), -35℃ to 50℃ (vertical) - Storage temperature: -40℃ to 85℃ - Protection grade: IP20
