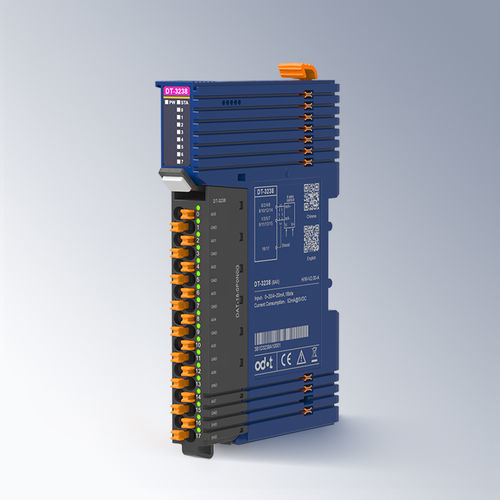

Analog input module DT-3238

8-channel8 analog inputscurrent

8 Channels current input module 0&4-20mA, 16-bit - The module supports 8 channels current signal acquisition. - The module can be configured for 0-20mA or 4-20mA current signal acquisition. - The module supports 2-wire (non-loop output, external power supply is required) or 4-wire current sensor input. - Module high speed redundant backplane bus with pluggable terminal blocks. Technical Parameters General Parameters - Current Consumption: 52mA@5VDC - Wirring Diameter: Min.0.2mm² (AWG24), Max.1.5mm² (AWG16) - Terminal Pluggable: Support - Backplane Bus: Double bus redundancy - Installation: 35mm DIN-Rail - Dimension: 119*14*80mm - Product Certification: CE Certification Input Parameters - Channel Number: 8 channels current input - Input Range: 0~20mA/4~20mA - Resolution: 16 bits (include the symbol bit) - Transition Time: 8ms/8 channels (the filter level is 0) - Input Impedance: ≤300Ω - Linearity Error: ≤±0.01% - Temperature Error: ≤±0.005%/K - Repeatability: ≤±0.05% (@25℃) - Measurement Error: ≤±0.2% (@25℃), ≤±0.4% (@-35℃~60℃) - Module Diagnosis: ADC fault: support, Break line detection: support, Overflow /Underflow: support Environment parameters - Horizontal Installation Operating Temperature: -35℃~60℃ - Vertical Installation Operating Temperature: -35℃~50℃ - Storage Temperature: -40℃~85℃ - Environment Humidity: 5%~95%RH (No condensation) - Installation Altitude: <2000m - Pollution Degree: Ⅱ - Protection Grade: IP20 - Mechanical Properties: Comply with IEC60068-2-6, IEC6008-2-27 - Insulation Withstand: Comply with IEC61131-2 - EMC Performance: Comply with IEC61131-2, IEC61000-4 (ESD: Contact discharge ±6kV, Performance level A; Air discharge ±8kV, Performance level A) SURGE: Common mode ±2kV, Performance level A EFT: ±2kV, Performance level A) - Channels: 8 current input - Input Range: 0~20mA / 4~20mA - Resolution: 16 bits - Current Consumption: 52mA@5VDC - Installation: 35mm DIN-Rail - Dimensions: 119*14*80mm - Operating Temperature: -35℃~60℃ (horizontal), -35℃~50℃ (vertical) - Storage Temperature: -40℃~85℃ - Protection: IP20 - Certification: CE
