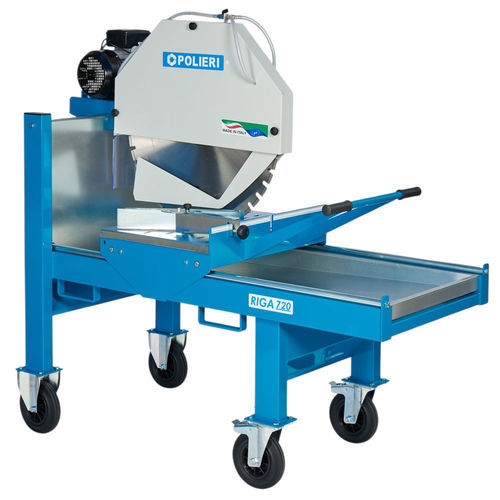

Circular sawing machine Riga 720

sliding tablefor concretefor stone

Description
Designed for cutting large materials such as structural stone blocks, concrete blocks and stone cladding. Cutting height is adjustable from 0 to 300 mm. Robust frame and powerful motor provide consistent performance. The single-phase version is suitable for sites without 400V/50Hz supply.

Mobility
Equipped with two fixed wheels and two swivel wheels for easy handling and transport.

Water recovery tank
Removable steel water tank for slurry collection and easy cleaning.

Work table
Sliding cutting table with wear-resistant bearings and an integrated mitre square for angled cuts.

Transmission
Drive system with three toothed V-belts and keyed pulleys.

Paint finish
All machines are powder-coated with epoxy-polyester thermosetting paints to improve gloss and resistance to atmospheric agents while respecting the environment.

Technical specifications (table)
Model: RIGA 720
Maximum blade diameter (mm): 720
Minimum blade diameter (mm): 720
Bore diameter (mm): 25.4
Three-phase motor (hp): 5.5
Single-phase motor (hp): 3
Motor speed (rpm): 2800
Cutting length (cm): 60
Cutting depth (cm): 30
Carriage table size (mm): 676 × 500
Dimensions (mm): 827 × 1550 × 1600
Weight (kg): 215

Technical features / specifications

• Model: RIGA 720
• Maximum blade diameter (mm): 720
• Minimum blade diameter (mm): 720
• Bore diameter (mm): 25.4
• Three-phase motor (hp): 5.5
• Single-phase motor (hp): 3
• Motor speed (rpm): 2800
• Cutting length (cm): 60
• Cutting depth (cm): 30
• Carriage table size (mm): 676 × 500
• Dimensions (mm): 827 × 1550 × 1600
• Weight (kg): 215
