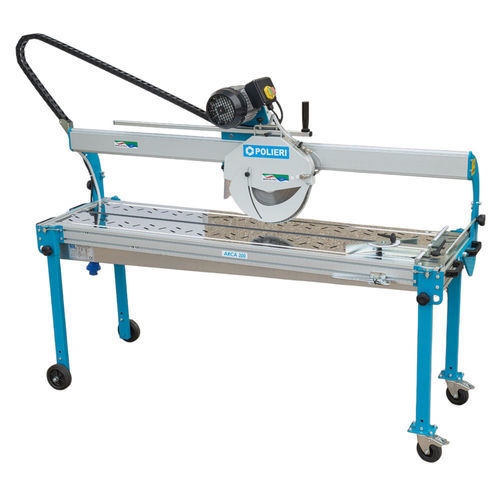

Stone bridge saw ARCA

for ceramics

Product overview
Ideal for cutting ceramic, stone materials, bricks and natural stone. Lightweight and compact, the machine delivers precise cuts thanks to an ergonomic structure and professional accessories. Large cutting capacity with compatibility for different blade types. Performs vertical (90°) and inclined cuts between 90° and 45° with depth setting maintained in any position. Optional side cutting table extends the working area while maintaining stability.

Applications

• Ceramic
• Stone materials
• Bricks
• Natural stone

Main features

• Wear-resistant work surface: stainless steel table and anodized extruded aluminium to prevent corrosion; perforations and grooves ensure water flow and avoid suction effects on the material.
• Maximum cutting precision: sliding bar in extruded aluminium or steel; cutting head runs on wheels with sealed ball bearings for smooth movement and accurate cuts.
• 45° cutting: machines allow inclined cuts between 90° and 45°.
• Electric water pump: continuous adjustable water flow to cool the blade and optimise cutting performance.
• Easy handling: depending on model, includes telescopic legs, handles, wheels, forklift guides and top lifting points for transport and site handling.
• Motor group: steel motor unit with poly-V belt drive for optimised cutting height and power transmission.
• Paint finish: epoxy-polyester powder coating for enhanced protection against weathering.

Technical specifications (table)
Models: 300/80, 300/105, 300/130, 300/150, 350/100, 350/130, 350/150
Maximum blade diameter (mm): 300, 300, 300, 300, 350, 350, 350
Minimum blade diameter (mm): 250, 250, 250, 250, 350, 350, 350
Bore diameter (mm): 25.4, 25.4, 25.4, 25.4, 25.4, 25.4, 25.4
Motor power (hp): 3, 3, 3, 3, 3, 3, 3
Voltage (V): 230, 230, 230, 230, 230, 230, 230
Cutting length (cm): 80, 105, 135, 155, 100, 130, 150
Cutting height – single pass (cm): 11, 11, 11, 11, 13, 13, 13
Cutting height – double pass (cm): 15, 15, 15, 15, 20, 20, 20
Length (cm): 120, 145, 175, 195, 145, 175, 195
Width (cm): 63, 63, 63, 63, 63, 63, 63
Height (cm): 80, 80, 80, 80, 85, 85, 85
Weight (kg): 75, 80, 82, 84, 82, 84, 86

Technical characteristics

• Series / Model name: ARCA
• Max blade diameter: up to 350 mm (depending on model)
• Motor power: 3 hp
• Voltage: 230 V
• Cutting length range: 80–155 cm (300-series), 100–150 cm (350-series)
• Single-pass cutting height: 11 cm (300-series), 13 cm (350-series)
• Double-pass cutting height: 15 cm (300-series), 20 cm (350-series)
• Construction: stainless steel work surface + anodized extruded aluminium; sliding bar in extruded aluminium or steel; sealed ball-bearing wheels on cutting head
• Integrated electric water pump with adjustable flow
• Optional accessories: side cutting table; handling aids (telescopic legs, wheels, forklift guides, lifting points)
• Finish: epoxy-polyester powder coating
