Sliding table sawing machine RIGA series

horizontalfor stonefor ceramics

Product overview

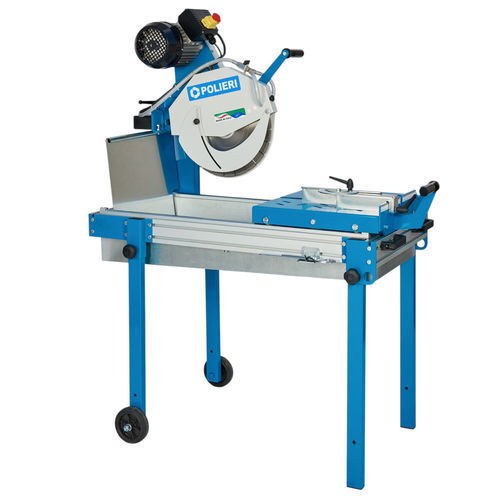

The RIGA 350 and RIGA 500 are sliding table saws engineered for cutting bricks, ceramic and stone materials, and natural stone. Their tilting cutting head allows execution of angled and special cuts such as grooves, profiles and notches with improved operator control.

Main features

• Motor group: Steel motor unit with Poly-V belt drive for optimized cutting height control and reliable power transmission.
• 45° Cutting: Both models permit 45° angled cuts for common masonry and stone applications.
• Work table: Sliding cutting table with steel bearings and integrated mitre square for precise angled cuts.
• Paint finish: Powder-coated using epoxy-polyester thermosetting paints for durable gloss and protection against atmospheric agents; environmentally respectful finish.

Technical specifications (table)
Model | 350 | 500
Blade diameter (mm) | 350 | 500
Bore diameter (mm) | 25.4 | 25.4
Motor power (hp) | 3 | 3
Voltage (V) | 230 | 230
Cutting length (cm) | 57 | 55
Maximum cutting length (cm) | 86 | 94
Cutting height – single pass (cm) | 13 | 20
Cutting height – double pass (cm) | 20 | 25
Carriage size (cm) | 46 × 42 | 58 × 50
Dimensions (cm) | 135 × 63 × 90h | 153 × 83 × 107h
Weight (kg) | 80 | 120

Technical details / specifications

• Model: RIGA 350 / RIGA 500
• Blade diameter (mm): 350 (RIGA 350) / 500 (RIGA 500)
• Bore diameter (mm): 25.4 (both)
• Motor power (hp): 3 (both)
• Voltage (V): 230 (both)
• Cutting length (cm): 57 (350) / 55 (500)
• Maximum cutting length (cm): 86 (350) / 94 (500)
• Cutting height – single pass (cm): 13 (350) / 20 (500)
• Cutting height – double pass (cm): 20 (350) / 25 (500)
• Carriage size (cm): 46 × 42 (350) / 58 × 50 (500)
• Dimensions (cm): 135 × 63 × 90h (350) / 153 × 83 × 107h (500)
• Weight (kg): 80 (350) / 120 (500)
