Piston pump PVK
waterelectricstationary

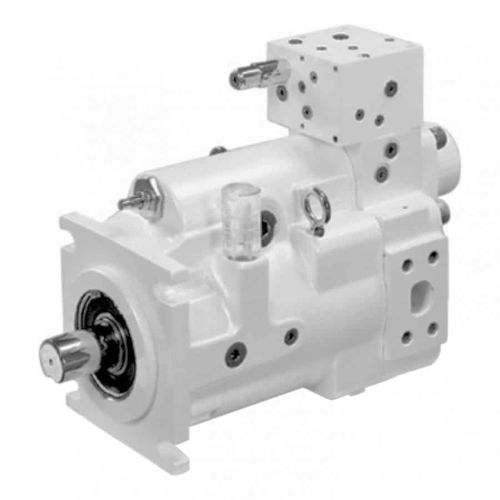

Piston pump - PVK - Oilgear - water / electric / stationary
Piston pump - PVK - Oilgear - water / electric / stationary
Add to favorites
Compare this product

Characteristics

Technology
piston
Fluid
water
Operation
electric
Mobility
stationary
Domain
industrial
Other characteristics
compact, axial, OEM, line, variable-displacement
Flow

239 l/min, 379 l/min, 512 l/min
(63.13712 us gal/min, 100.12121 us gal/min, 135.25609 us gal/min)

Pressure

241 bar, 283 bar, 345 bar, 400 bar
(3,495.409 psi, 4,104.568 psi, 5,003.802 psi, 5,801.51 psi)

Length

376 mm, 540 mm
(15 in, 21 in)

Width

210 mm, 299 mm
(8.27 in, 11.77 in)

Height

274 mm
(10.79 in)

Weight

91 kg, 250 kg
(200.62 lb, 551.16 lb)

Description

Uniquely built with longitudinally mounted controls, the PVK pump line consists of variable-displacement, open-loop, axial-piston pumps available in two frame sizes and three displacement sizes. Product Details Created with Oilgear’s advanced “hard-on-hard” rotating system technology, these pumps have longer operational life, better resistance to contamination, and allow for operation with low-viscosity or other special fluids. And with hydrodynamic bearing support on the cylinder barrel, the pump has a distinctive compact design. For operations that require fixed displacement, the PFK pump line gets the job done with the same great features as the PVK. Oilgear makes some of the longest-lasting, most reliable pumps in the world. Learn more about the proprietary design of the Oilgear variable-displacement, axial-piston pump line. Oilgear fully supports the PVK Pump product line and is the only valid source for OEM parts. All Oilgear repairs are machined and tested per our original factory specifications. To submit your Oilgear product for OEM-certified repair, please utilize our Return Material Authorization Form. Click here to download. While these pumps were built to last, Oilgear recommends that legacy PVK pumps be replaced by the current PVG pump line.

Catalogs
