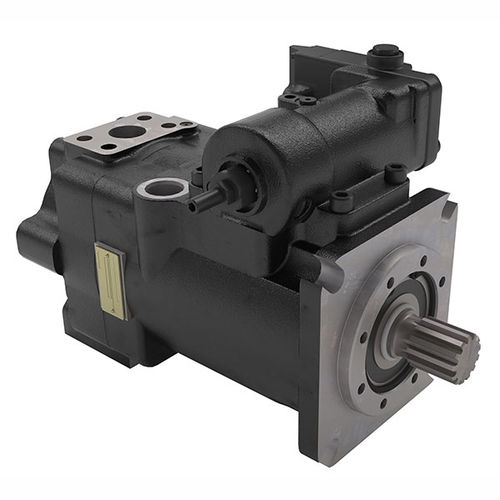

Hydraulic piston pump PVG-150
compacthigh-pressurevariable-displacement

hydraulic piston pump
hydraulic piston pump
Add to favorites
Compare this product


Characteristics

Type
piston
Other characteristics
compact, high-pressure, variable-displacement, high-performance, axial, standard
Pressure

Max.: 400 bar
(5,802 psi)

Min.: 301 bar
(4,366 psi)

Flow rate

238.5 l/min
(63.01 us gal/min)

Speed

Max.: 3,000 rpm
(18,850 rad.min-1)

Min.: 2,000 rpm
(12,566 rad.min-1)

Weight

78 kg
(171.96 lb)

Power

160.4 kW
(218.08 hp)

Description

With fast control response and superior performance, the PVG is a variable-displacement axial-piston pump designed to take on your most demanding applications. It offers high-pressure, superior performance in a compact design — while thriving on low-viscosity fluids. PRODUCT DETAILS That compact design is made possible with our proprietary hydrodynamic bearing that supports the cylinder barrel. And with multiple frame sizes and five displacements, there’s a high-performance PVG made for your operations. Our PVG open-loop axial-piston hydraulic pumps provide an almost instantaneous response to system commands through a high-response, four-way, pilot-operated control. Other pumps this size can’t do that — especially at our price. Oilgear has an advanced “hard-on-hard” rotating system that provides longer operational life, resistance to contamination and allows our pumps to thrive on low-viscosity fluids. Oilgear makes some of the longest-lasting, most reliable pumps in the world. Learn more about the proprietary design of the Oilgear variable-displacement, axial-piston pump line. STANDARD FEATURES Four-way pilot-operated variable displacement control SAE heavy duty shaft Sealed front shaft bearings
