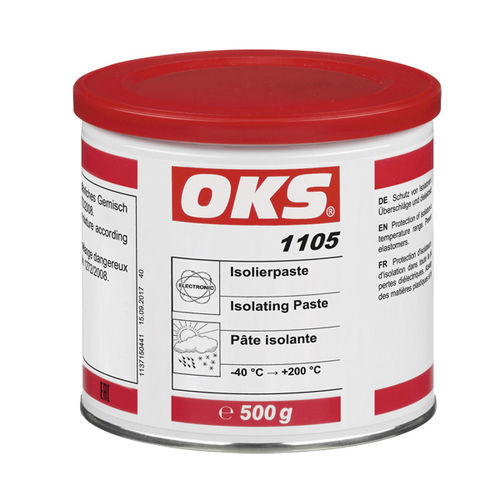

Lubricant paste OKS 1105

electrically-conductivefor metalfor electrical components

OKS 1105 prevents the formation of electrically conductive layers and minimises the risk of flashovers and dielectric losses. The insulators and switchgear covered with the paste thus maintain a good insulation resistance. Areas of application Sealing lubrication for electrical or electronic equipment such as relays, plug-in connections, cable lugs and lamp sockets Protection of insulators and switchgear in humid atmospheres, for example of junction boxes, screw terminals, overload cutouts at high-voltage pylons, connecting cables and terminal connections Lubricant for plastic screw connections and other moving parts of metal, ceramic, plastic Advantages and benefits Excellent water repellent properties Excellent surface wetting Good adhesion on glass, porcelain and plastics Stable consistency across a wide temperature range Very good resistance to chemical and weather-based influences (e.g. ozone, UV radiation) Neutral with regard to many materials Small change in the dielectric properties across a wide temperature range Technical specifications lower operating temperature: -40 °C upper operating temperature: 200 °C specific resistivity: approx. 10¹⁴ 1/Ω cm (25°C) dielectric constant: 2.75 (10² - 10⁵ Hz) Applications For optimum effectiveness, clean the point to be protected. Best way is to clean mechanically first and then with OKS 2610/OKS 2611 universal cleaner. Apply OKS 1105 evenly. Avoid excesses. Observe the plant manufacturer's instructions. If the protective layer is saturated with conductive particles, remove these and apply a new coating. Industries No matter what industry you come from, we at OKS have the right solution for you.
