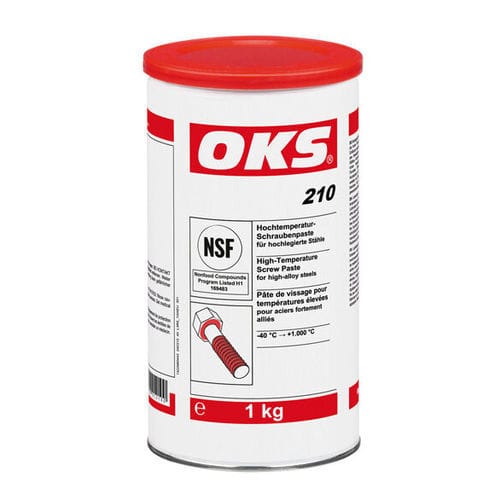

Assembly paste OKS 210

lubricantfor screwsfor the paper industry

Special, ultra-pure, metal-free high-temperature paste to minimise chromium(VI) formation on bolted connections with high-alloy steels which are exposed to high temperatures or corrosive or chemically aggressive influences. Areas of application Lubrication of materials prone to galling or corroding, such as V2A, V4A and other high-alloy steels Such as those on gas and steam turbines in the power station sector In combustion engines Screwed connections on pipe fittings, flange joints and fittings in superheated steam lines Screwed connections on exhaust pipes, in combustion chambers and similar Advantages and benefits Minimises chromium(VI) forming on steels with a chromium content when exposed to high temperatures Metal-free (as per recipe) Less than 500 ppm of flourides, chlorides and sulphides Prevents galling of high-alloy bolted connections during assembly Allows non-destructive dismantling after a long period of use and under aggressive operating conditions Good water resistance Wide operating temperature range Constant coefficient of friction MOSH/MOAH-free (as per recipe) NSF H1 registered Technical specifications lower operating temperature: -40 °C upper operating temperature: 1000 °C (separation) breakaway torque: < 2.5 x tightening torque (M10 A4, 40 Nm, 400 °C, 100 h) UFI: 5XJC-G0H8-E00X-R928 Applications For best adhesion, clean the threads and sliding surfaces from dirt and other lubricants. Best way is to clean mechanically first and then with OKS 2610 or OKS 2611 universal cleaner. Apply paste evenly in sufficient amount onto head/nut support and thread or onto the sliding areas with brush, spatula, etc. Paste also takes over sealing properties.
