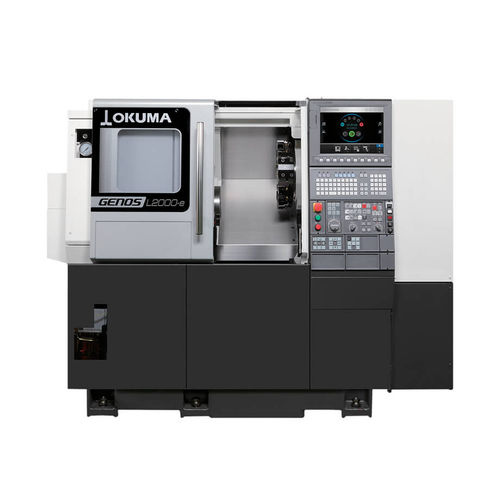

CNC lathe GENOS L2000-E
horizontal2-axisA2-6

CNC lathe
CNC lathe
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Spindle mount
A2-6
Other characteristics
high-precision, powerful, high-rigidity, compact, milling, spindle
Diameter

230 mm
(9.06 in)

Spindle speed

Min.: 45 rpm
(282.743 rad.min-1)

Max.: 5,000 rpm
(31,415.927 rad.min-1)

Maximum cutting length

500 mm
(20 in)

Rapids on X

25,000 mm/min, 30,000 mm/min
(16 in/s, 20 in/s)

Rapids on Z

25,000 mm/min, 30,000 mm/min
(16 in/s, 20 in/s)

Nominal power

11 kW, 15 kW
(15 hp, 20.4 hp)

Description

The latest in the GENOS L series of lathes, our GENOS L2000-e features an integral spindle for powerful, high-precision CNC machining. This one-saddle lathe is stronger, smaller, and ideal for cutting a wide range of exotic materials with ease. The integral spindle motor provides increased machining capacity as highly rigid guideways handle powerful cutting capabilities. This highly evolved horizontal lathe delivers turning and optional milling capabilities in a compact footprint. The GENOS L2000-e features Thermo-Friendly construction—including TAS-C (Thermo Active Stabilizer)—standard and automatically compensates thermal effects to maintain tight tolerances. The GENOS L2000-e is an operator-friendly designed machine that simplifies cleaning, filtration, and maintenance tasks. User-friendly features include: A separate cooling tank for quick servicing Easy spindle access to reduce operator work burden and maintenance tasks Reduced chip accumulation during long, continuous runs decreases machine downtime for cleaning
