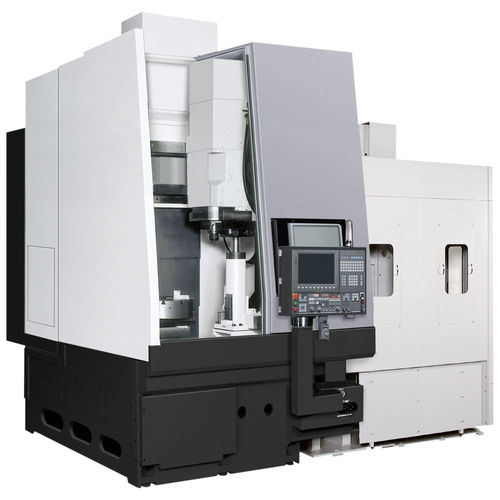

CNC turning center VTM-100
vertical3-axisfor heavy-duty machining

CNC turning center
CNC turning center
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
vertical
Number of axes
3-axis
Applications
for heavy-duty machining
Other characteristics
milling, cutting, spindle, high-rigidity
Diameter

1,000 mm
(39.37 in)

Spindle speed

Max.: 1,250 rpm
(7,853.982 rad.min-1)

Min.: 13 rpm
(81.681 rad.min-1)

Maximum cutting length

840 mm
(33 in)

Axe X

650 mm
(26 in)

Axe Z

840 mm
(33 in)

Rapids on X

16,000 mm/min
(10 in/s)

Nominal power

22 kW, 30 kW
(29.9 hp, 40.8 hp)

Description

Our VTM-100 3-axis vertical turning center combines the benefits of a vertical lathe with those of a machining center. The 50-taper 36-tool magazine enables this machine to offer both turning and milling operations on a single platform. It is the ideal machine for efficient low-volume parts production, including valve bodies and work that requires heavy milling. The box-way construction and wide, angular slideways on each axis provide high rigidity for accurate machining. A vertical axis counterbalance assures smooth, stable feed at all speeds. The headstock is fixed to the base, minimizing the influence of thermal changes and vibration on cutting accuracy. In addition, the VTM-100 is available with a wide range of standard accessories, including a spindle orientation function.
