CNC turning center LAW-V24
vertical4-axisA2-11

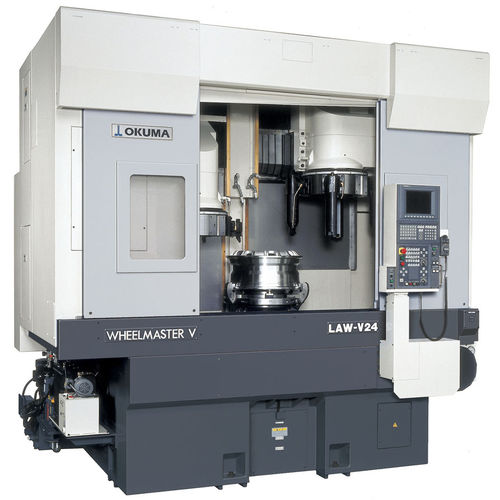

CNC turning center - LAW-V24 - OKUMA - vertical / 4-axis / A2-11
CNC turning center - LAW-V24 - OKUMA - vertical / 4-axis / A2-11
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
vertical
Number of axes
4-axis
Spindle mount
A2-11
Turret
double-turret
Applications
for aluminum wheels
Performance
high-rigidity
Spindle speed

Max.: 3,000 rpm
(18,849.556 rad.min-1)

Min.: 200 rpm
(1,256.637 rad.min-1)

Maximum cutting diameter

660 mm
(26 in)

Rapids on X

24 m/min

Rapids on Z

24 m/min

Nominal power

45 kW, 55 kW
(61.2 hp, 74.8 hp)

Description

Our LAW-V24 CNC turning center is the latest evolution of Okuma's large 4-axis turning centers for aluminum wheel machining. Two turrets offer dramatic improvements in process flexibility and cycle time when compared to single-saddle machines. The LAW-V24 has two independent, 6-station turrets, 3,000 rpm, and 87 hp. The large frame and machine travels can machine a 24-inch wheel. The vertical orientation offers superior chucking of large wheels, as well as excellent chip removal. 4-axis turning is simple with the Okuma OSP control, where there is no need to zero return. Efficient chip flow and extra-large capacity coolant system Large-diameter coupling provides highly accurate indexing and a powerful hydraulic clamp

Catalogs

No catalogs are available for this product.

See all of OKUMA‘s catalogs
