CNC lathe V100R
vertical2-axiscolumn type

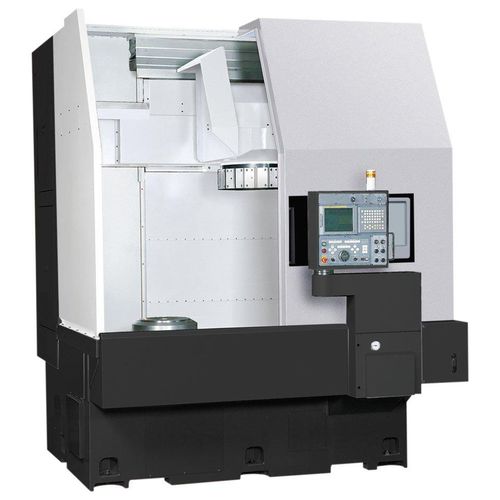

CNC lathe - V100R - OKUMA - vertical / 2-axis / column type
CNC lathe - V100R - OKUMA - vertical / 2-axis / column type
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
vertical
Number of axes
2-axis
Structure
column type
Performance
high-rigidity, high-productivity
Diameter

1,250 mm
(49.21 in)

Spindle speed

Min.: 13 rpm
(81.681 rad.min-1)

Max.: 1,250 rpm
(7,853.982 rad.min-1)

Maximum cutting diameter

1,000 mm
(39 in)

Maximum cutting length

890 mm
(35 in)

Rapids on X

24 m/min

Rapids on Z

24 m/min

Nominal power

37 kW, 45 kW
(50.3 hp, 61.2 hp)

Description

Our V100R vertical lathe increases productivity by providing stable machining of thin and odd-shaped workpieces. The box-type base and column make a highly dependable, highly rigid structure and the headstock with flange construction minimizes the effects of thermal deformation and vibration, which ensures stable, accurate cutting. The base is designed for smooth chip flow, and the optional chip conveyor can be placed for side or rear disposal to meet shop requirements. The ergonomic design includes easy access to the chuck and a front-skirt operation panel convenient for up-close jobs in addition to the swiveling pendant operation panel.
