2-post lift 199 series
5.5 ton6 ton4 ton

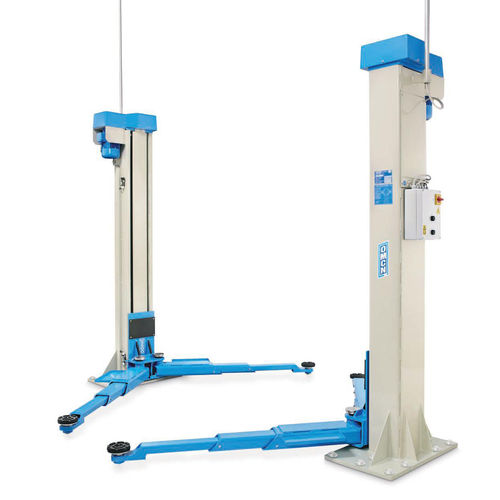

2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 2
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 3
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 4
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 5
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 6
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 7
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 8
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 9
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 10
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 11
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 12
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 13
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 14
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 15
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 16
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 17
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 18
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 19
2-post lift - 199 series - OMCN SOLLEVAMENTO - 5.5 ton / 6 ton / 4 ton - image - 20
Add to favorites
Compare this product

Characteristics

Type
2 posts
Maximum load
5.5 ton, 6 ton, 4 ton, 3.5 ton, 3 ton, 2 ton
Operation
electromechanical
Applications
for car, for trucks
Voltage
400 V
Lifting height

Max.: 1,910 mm
(75.197 in)

Min.: 120 mm
(4.724 in)

Minimum height

120 mm
(4.72 in)

Motor power

2 kW, 2.6 kW, 3 kW
(2.72 hp, 3.54 hp, 4.08 hp)

Weight

Max.: 1,480 kg
(3,262.84 lb)

Min.: 760 kg
(1,675.51 lb)

Description

• Lifting through trapezoidal turning screws, made of high resistance steel with fine pitch so that trolleys may become self-braking. • Completely protected internal sliding trolleys. • Load-bearing nuts from a special material, to minimise lubrification. • Self-protected safety nuts. • Monocoque body column structure. • Four sliding rollers for each trolley, plus four adjustable guide-shoes guarantee a perfect adhesion and flowability. • Synchronization between the two trolleys regulated by electronic device which controls the re-alignment after a difference of more than 15 mm. • Over-sized electric motor with thermic protection. • Closed-course electrical system, with low-voltage drives and endstrokes, “man standing-by” operating. • Epoxy powder painting. • Completely pre-assembled frame. • Equipped with greasing pump. • Equipped with anchor small blocks
