4-post lift TOP LINE
3.5 ton5 tonelectro-hydraulic

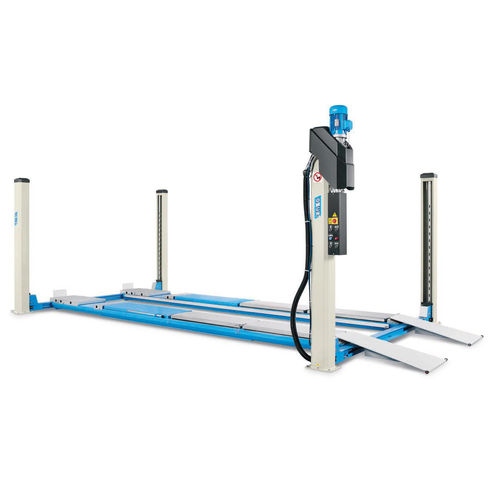

4-post lift - TOP LINE - OMCN SOLLEVAMENTO - 3.5 ton / 5 ton / electro-hydraulic
4-post lift - TOP LINE - OMCN SOLLEVAMENTO - 3.5 ton / 5 ton / electro-hydraulic
4-post lift - TOP LINE - OMCN SOLLEVAMENTO - 3.5 ton / 5 ton / electro-hydraulic - image - 2
4-post lift - TOP LINE - OMCN SOLLEVAMENTO - 3.5 ton / 5 ton / electro-hydraulic - image - 3
4-post lift - TOP LINE - OMCN SOLLEVAMENTO - 3.5 ton / 5 ton / electro-hydraulic - image - 4
4-post lift - TOP LINE - OMCN SOLLEVAMENTO - 3.5 ton / 5 ton / electro-hydraulic - image - 5
4-post lift - TOP LINE - OMCN SOLLEVAMENTO - 3.5 ton / 5 ton / electro-hydraulic - image - 6
4-post lift - TOP LINE - OMCN SOLLEVAMENTO - 3.5 ton / 5 ton / electro-hydraulic - image - 7
4-post lift - TOP LINE - OMCN SOLLEVAMENTO - 3.5 ton / 5 ton / electro-hydraulic - image - 8
4-post lift - TOP LINE - OMCN SOLLEVAMENTO - 3.5 ton / 5 ton / electro-hydraulic - image - 9
4-post lift - TOP LINE - OMCN SOLLEVAMENTO - 3.5 ton / 5 ton / electro-hydraulic - image - 10
Add to favorites
Compare this product

Characteristics

Type
4 posts
Maximum load
3.5 ton, 5 ton
Operation
electro-hydraulic
Applications
for car
Voltage
400 V
Other characteristics
platform
Lifting height

Max.: 1,850 mm
(72.835 in)

Min.: 160 mm
(6.299 in)

Minimum height

160 mm, 210 mm
(6.3 in, 8.27 in)

Motor power

3.3 kW
(4.49 hp)

Weight

Max.: 1,980 kg
(4,365.15 lb)

Min.: 1,400 kg
(3,086.47 lb)

Description

• Mechanical stationing device with pneumatic unlock and automatic raising. • Microprocessor (PLC) with an auto-diagnosis embedded system. • Extra-large version, 3000 mm between the columns. • Galvanized rails for crosspieces conceived to avoid any water stagnation. • New generation control box with an upper engine and a cart cover aiming to reduce the room occupied around the columns. • Double oscillating rear plates with 5° movement .
