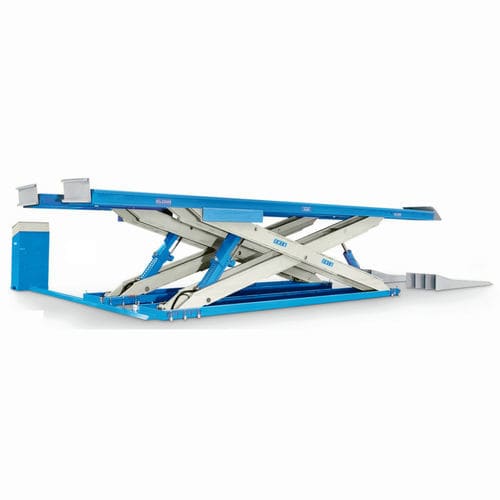

Scissors post lift 9 serieselectro-hydraulic400 Vfor heavy trucks
Add to favorites
Compare this product
Characteristics
- Type
- scissors
- Operation
- electro-hydraulic
- Voltage
- 400 V
- Applications
- for heavy trucks
- Other characteristics
- platform
- Lifting height
Max.: 1,900 mm
(74.803 in)Min.: 390 mm
(15.354 in)- Minimum height
390 mm
(15.35 in)- Motor power
5.5 kW, 7.5 kW, 8.8 kW, 15 kW
(7.48 hp, 10.2 hp, 11.96 hp, 20.39 hp)- Weight
Max.: 20,600 kg
(45,415.23 lb)Min.: 4,000 kg
(8,818.49 lb)
Description
• Built in conformity with the european nor mative laws in force.
• “Man standing-by” controls. Auxiliary tension 24 V.
• Sound device and two hand control during the last descent phase.
• Safety-valve against overloads.
• Safety-valve on each cylinder against dam age or breackage of pipes.
• Check through a valve adjusting the descent speed.
• Electronic device for the check and con stant keeping of the parallelism of the two platforms independentely from the load dis tribution. System of parallelism is checked by PLC.
• Safety photocell for the position of the two platforms.
• Special device for the check and the execu tion of the standing of the two platforms.
• Possibility to install the control-box according to the necessities.
• Delivered with oil for the hydraulic circuit.
• Equipped with anchor small blocks.
