2-post lift 199 series
4 ton3.5 ton3 ton

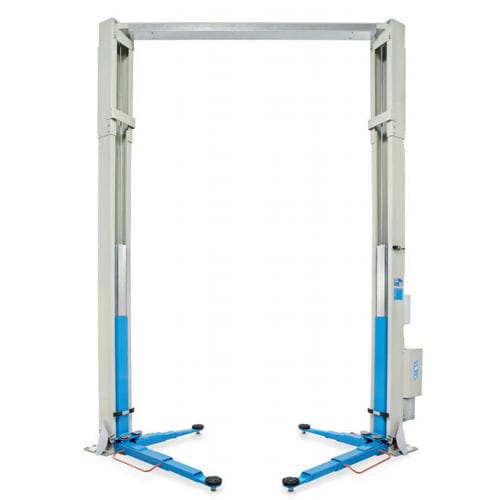

2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 2
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 3
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 4
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 5
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 6
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 7
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 8
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 9
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 10
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 11
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 12
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 13
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 14
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 15
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 16
2-post lift - 199 series - OMCN SOLLEVAMENTO - 4 ton / 3.5 ton / 3 ton - image - 17
Add to favorites
Compare this product

Characteristics

Type
2 posts
Maximum load
4 ton, 3.5 ton, 3 ton
Operation
electro-hydraulic
Applications
for car
Voltage
400 V
Lifting height

Min.: 90 mm
(3.543 in)

Max.: 2,060 mm
(81.102 in)

Minimum height

90 mm, 120 mm
(3.54 in, 4.72 in)

Motor power

2.2 kW
(2.99 hp)

Weight

770 kg, 820 kg, 940 kg, 1,000 kg, 1,020 kg
(1,697.56 lb, 1,807.79 lb, 2,072.35 lb, 2,204.62 lb, 2,248.72 lb)

Description

• Maintenance interventions reduced to the minimum thanks to the long life of the lift’s components and the total absence of cables, chains, pulleys, bearings, screws and lead nuts. • Alignment and synchronism of the two saddles independently of the load distribution. • Mechanical safety supports with automatic connection. • Safety valves mounted directly into the cylinders. • Safety device in presence of obstructions during the descent phase. • Speed compensated control. • Overload valve. • Feet protection and automatic arm locking device. • Low voltage 24 V “man standing-by” controls. • Vehicle anti-collision device on the upper crosspiece. • Epoxy powder painting. • Equipped with anchor small blocks. • Delivered with oil for the hydraulic circuit.
