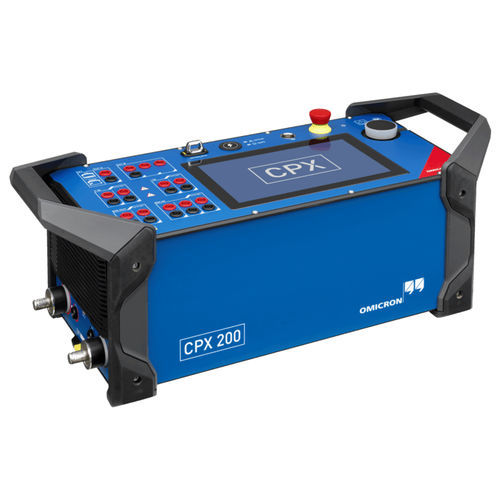

Voltage testing device CPX 200

currentperformancequality

Product Overview:A compact multifunctional testing device for commissioning, maintenance and condition assessments of medium and high voltage assets.CPX 200 – Revolutionary ExcellenceThe CPX 200 is designed to meet the demands of today and the challenges of tomorrow’s energy systems. Compact, powerful, and exceptionally safe, it sets a new benchmark for next-generation multifunctional testing. Developed in accordance with internationally recognized standards, the CPX 200 meets all current safety and cybersecurity requirements. It’s ideal for substation commissioning and diagnostic testing of medium- and high-voltage assets. It delivers an outstanding performance that covers hardware, software, and accessories, ensuring long-term reliability and maximum value.Tests power transformers, instrument transformers, and switchgearsExtended application range with integrated high current module and compact high voltage source HVX10Adjustable accessories with "Click&Play" systemVersatile transport options with backpack or transport caseGuided test procedures with customized PC software CPXpertQuick operation via CPX TouchControlEfficient analyses with future-oriented cloud system CORTEX GridEasy to OperateCombined measurement channels minimize wiring effortsTrue three-phase voltage sourceColored multi-touchscreen with automatic brightness adjustmentGuided test execution with detailed nameplate supportMulti-asset testing in a single user interfaceComplete and automatic test result documentationStreamlined test plans and reporting from start to finishPowerful1000 A AC/DC with High Current Module10 kV AC/DC with HVX10Testing frequency range: 1 – 600 Hz and DCHigh measurement accuracyDeveloped with Safety in MindRed/Green signal lightsEmergency switching off buttonINTERLOCK keyWorkflow according to EN 50191Wiring guidance with indicator lightsOptional accessory: external warning lamp (coming soon)Maximum Power per SpaceAll tests can be performed with a total system weight under 30 kg (66 lb)CPX 200: 10.6 kg (23.3 lb)High-Current Module: 3.3 kg (7.4 lb)HVX10: 14.8 kg (32.7 lb)Avoid heavy lifting and cargo limitations via a lightweight system solutionKey Features / Technical Specifications:Multifunctional testing for medium and high voltage assetsCompact and lightweight designIntegrated high current and high voltage modulesAdvanced safety features (signal lights, emergency stop, interlock, EN 50191 compliance)Guided and automated test proceduresPC software and cloud integration for analysis and reportingTouchscreen interface with automatic brightnessWide frequency testing range (1–600 Hz and DC)High measurement accuracyModular accessories and transport options
