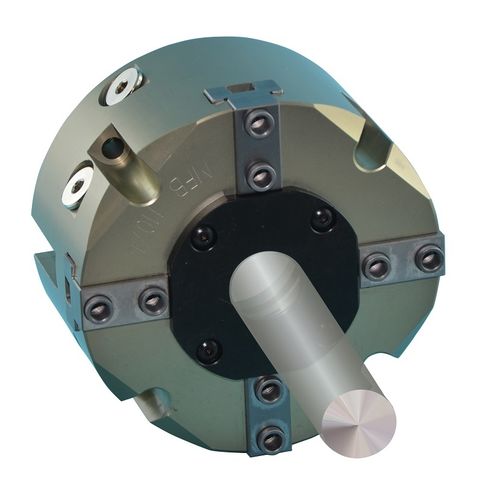

Pneumatic gripper FRMconcentric4-jawself-centering
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- concentric
- Number of jaws
- 4-jaw
- Options
- self-centering
- Grip strength
1,200 N, 1,700 N, 2,900 N
- Stroke
31 mm, 57 mm, 120 mm
(1.22 in, 2.244 in, 4.724 in)
Description
- Range of operating pressure: 2 - 8 bar
- Repeatability accuracy: 0.02 mm; over 100 cycles;
- Operating temperature: from -10°C to 90°C; version up to 130°C upon request
- Operating principle: wedge-hook kinematics
- Housing material: high tensile hardcoated aluminium alloy, hard-anodized
- Material of functional parts: treated ground steel
- Actuation: pneumatic, with filtered compressed air (10 μm): dry, lubricated or non-lubricated (DIN ISO 8573-1: 644)
- Maintenance: no maintenance required for the first 1.5 million cycles
- Suitable for internal/external gripping
- Layout finger connection page 18
- Rating IP 40
- Air connections: sides and base
- Through central hole
- Warranty 24 months
